White smoke coming out of tailpipe after highway driving

Discussion in '5th Gen 4Runners (2010-2024)' started by Luccig, May 11, 2023.

  1. May 11, 2023 at 6:25 AM
    #1
    Luccig

    Luccig [OP] 2020 Limited

    Joined:
    Dec 25, 2022
    Member:
    #30247
    Messages:
    39
    Gender:
    Male
    Toronto / GTA, Canada
    Vehicle:
    2020 Limited
    Hi All

    I see white smoke, quite a lot, coming out of the pipe but mostly after a highway drive, after a good engine heating/usage. Next morning, startup with a lot of white smoke.

    The coolant not dropping, not that I can see. No overheating.

    I just did a couple of weeks a go a coolant drop and replace, about a gallon. Also PCV valve replaced. Checked the valve and hose again, looks good.

    Bought the car about 4 month ago, and wasn't especially a low price or anything. I though I just paid the price, 50K canadian, for a good car 70K km, fair deal or so I thought. The dealer did not mention anything, of course, they knew nothing.

    However, seeing this 3 month later, I am thinking it this may be the reason it was sold.

    I ordered a liquid testing kit, will do the test, then pull the plugs, etc. to find out for sure if the head gasket is leaking.

    But with so much smoke on startup, for about 30 seconds, then none visibly later, it does not look good.

    Thanks for reading

    Last edited: Jun 19, 2023
  2. May 11, 2023 at 7:19 AM
    #2
    WNC2018Limited

    WNC2018Limited New Member

    Joined:
    Apr 15, 2023
    Member:
    #32374
    Messages:
    149
    Gender:
    Male
    Doesn't sound good. Did you buy it under any kind of warranty, i.e. a certified pre-owned vehicle? Did it come with any service records? I'd go after the dealer that sold you the vehicle and/or Toyota if necessary. It's not reasonable for you to have to pay anything close to the full cost of a major engine repair for a 4Runner of that age and mileage.

  3. May 11, 2023 at 8:12 AM
    #3
    whippersnapper02

    whippersnapper02 New Member

    Joined:
    Feb 27, 2019
    Member:
    #8982
    Messages:
    1,941
    Gender:
    Male
    First Name:
    Christian
    Vehicle:
    2019 4Runner TRD Offroad Premium
    Sounds like normal condensation.

    TN_FunRunner and Stitches1974 like this.
  4. May 11, 2023 at 1:22 PM
    #4
    Rocko9999

    Rocko9999 New Member

    Joined:
    Apr 21, 2023
    Member:
    #32488
    Messages:
    697
    Vehicle:
    2011 Limited
    A video would be helpful if you can.

  5. May 11, 2023 at 2:12 PM
    #5
    RumHamRunner73

    RumHamRunner73 Dead on with a zero

    Joined:
    Nov 24, 2022
    Member:
    #29771
    Messages:
    2,001
    Gender:
    Male
    First Name:
    Philip
    Oakboro, N.C
    Vehicle:
    2022 4 Runner Limited. Blizzard Pearl
    Between the test you ordered, A cylinder leak down and a cooling system pressure test, You should be able to narrow down to where the problem is at.

    Blackstone labs can also perform an oil diagnosis to further pinpoint a possible problem area.

    Welcome to the forum and keep us updated on your results.

    Ripper238 likes this.
  6. May 11, 2023 at 3:36 PM
    #6
    Startrek

    Startrek New Member

    Joined:
    Apr 28, 2021
    Member:
    #21187
    Messages:
    282
    Gender:
    Male
    Vehicle:
    2012
    take a look at spark plugs. use camera to inspect inside cylinders.

  7. May 11, 2023 at 5:26 PM
    #7
    Luccig

    Luccig [OP] 2020 Limited

    Joined:
    Dec 25, 2022
    Member:
    #30247
    Messages:
    39
    Gender:
    Male
    Toronto / GTA, Canada
    Vehicle:
    2020 Limited
    Thank you guys for your replies.
    No extra warranty or service records, bought it from a non toyota dealer.
    Yes, I'll do the test when it will come in a couple of days, then will try to look down the cyls with a camera and do cooling system pressure test

    I know basic warranty is 60k km in Canada, but I see 100k power train warranty on toyota website, and a head gasket is a power train component. If it ends up being a head gasket, I will go to the dealer, I'll try to find a bigger dealer in GTA, hoping they would not play around. We'll see.

    I'll also upload a video shortly. Thanks again.

  8. May 11, 2023 at 11:19 PM
    #8
    McSpazatron

    McSpazatron New Member

    Joined:
    Feb 16, 2021
    Member:
    #19810
    Messages:
    4,543
    Gender:
    Male
    Vehicle:
    2021 4runner OR
    Dobinson IMS Warn Bumper CaliRaised Sliders 285/70 K02s
    This is a powertrain component problem. If it has remaining toyota warranty, dont touch anything. Take it to a dealer.

    Rocko9999, jacarter3 and MooreKen like this.
  9. May 12, 2023 at 6:10 AM
    #9
    jacarter3

    jacarter3 New Member

    Joined:
    May 12, 2023
    Member:
    #32852
    Messages:
    3
    First Name:
    James Carter
    Vehicle:
    SR5 4Runner '93 240k miles
    partially restored body - engine and drive train need lots of love
    This sounds like a gasket issue (and hopefully not a head fracture) because it seems to be the result of a coolant leak that happens when the engine gets to operating temperature. It appears to be a very slow leak and, while the engine is running, does not reveal visible smoke (but an odor might be noticed). When the engine shuts down, it's cooling from its running temp and the cooling system is still pressurized. The leak continues and slows as it cools but accumulates in the cylinder. So, when the engine starts, it's burned off in a visible burst. This just a guess from a guy that had his 22RE head crack because the dealer did not replace the thermostat as I specifically directed. Note with those engines, the thermostat fails CLOSED so it's a reliable way to fry an engine.

  10. May 12, 2023 at 10:43 AM
    #10
    Rocko9999

    Rocko9999 New Member

    Joined:
    Apr 21, 2023
    Member:
    #32488
    Messages:
    697
    Vehicle:
    2011 Limited
    Yes, easy to test. Drive for a while, park overnight, pull a few spark plugs and use borescope to look into cylinders for coolant. If it's coolant, you should see a few drops in each cylinder.

  11. May 15, 2023 at 10:17 AM
    #11
    Luccig

    Luccig [OP] 2020 Limited

    Joined:
    Dec 25, 2022
    Member:
    #30247
    Messages:
    39
    Gender:
    Male
    Toronto / GTA, Canada
    Vehicle:
    2020 Limited
    Yes, I have a dealer appt tomorrow for them to diagnose, for 90 bucks, then to take it from there. Hope it is a warranty issue if it comes to be serious. We'll see.

    IF the dealer says it's not headgasket then I'll try the suggestions above to make sure, thank you all.

    Also I got the blue liquid test and it did not become green or yellow, so far so good.

    Last edited: Jun 19, 2023
  12. May 15, 2023 at 10:22 AM
    #12
    Luccig

    Luccig [OP] 2020 Limited

    Joined:
    Dec 25, 2022
    Member:
    #30247
    Messages:
    39
    Gender:
    Male
    Toronto / GTA, Canada
    Vehicle:
    2020 Limited
    Ah, I remember smelling vaguely coolant, when pushed on the highway or high rev, infrequently but I smelled it once or twice.

    Also since I did a recent coolant drop and replace, I hope there wasn't some kind of leak stop added before I bought the car. I'll post more after the dealer appointment.

  13. May 23, 2023 at 2:57 PM
    #13
    Luccig

    Luccig [OP] 2020 Limited

    Joined:
    Dec 25, 2022
    Member:
    #30247
    Messages:
    39
    Gender:
    Male
    Toronto / GTA, Canada
    Vehicle:
    2020 Limited

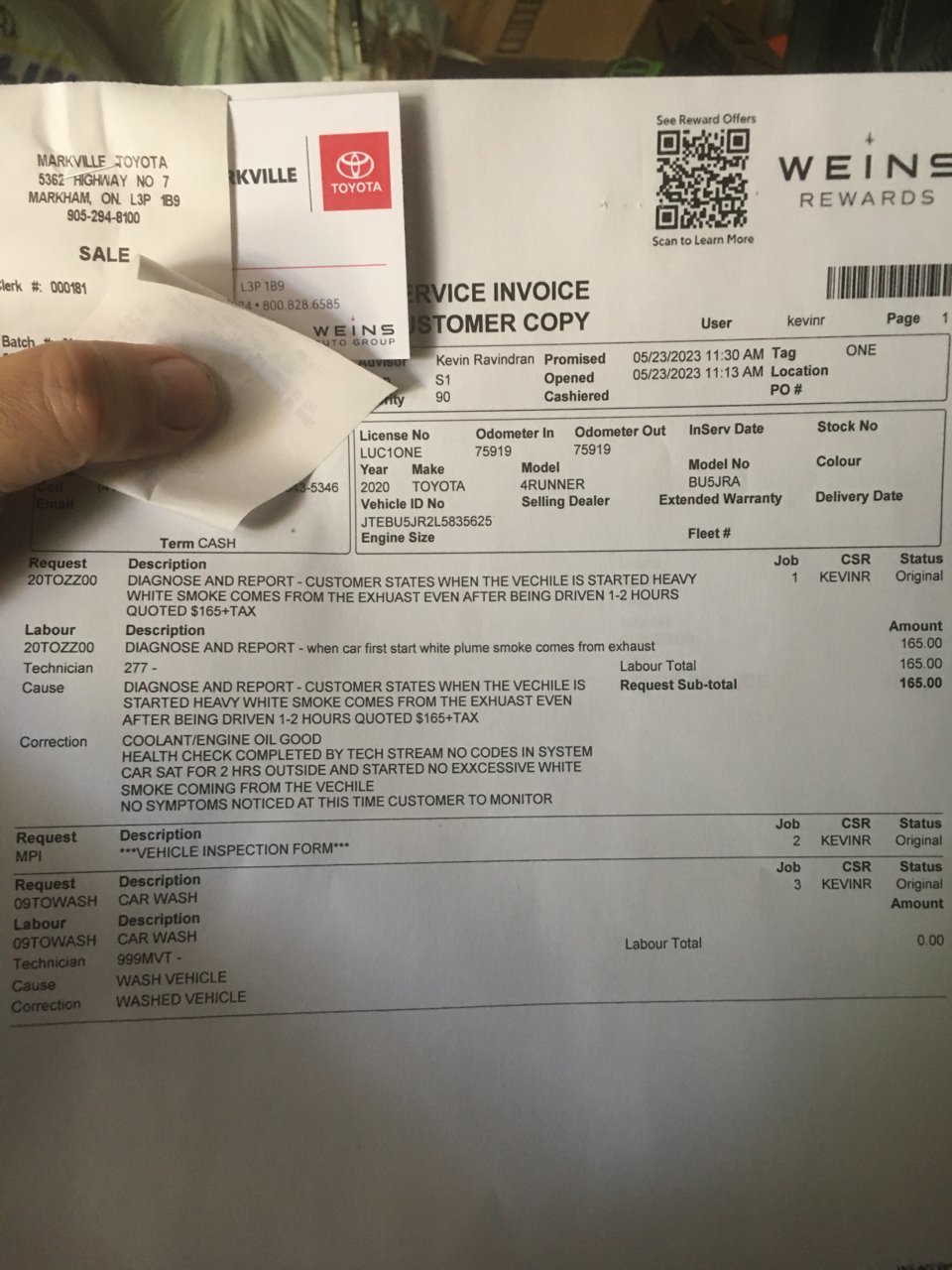

    Funny thing these dealers.. the particular one I went to didn't even look at my videos, charged me the 160 diagnose fee and said they didn't find anything. Of course they didn't, since the car has to be driven for a while then left for a few hours to cool down.

    Last edited: Jun 19, 2023
  14. May 23, 2023 at 3:04 PM
    #14
    Matt83

    Matt83 New Member

    Joined:
    Jul 11, 2019
    Member:
    #10511
    Messages:
    747
    Northeast
    Expensive car wash.

  15. May 23, 2023 at 3:06 PM
    #15
    Luccig

    Luccig [OP] 2020 Limited

    Joined:
    Dec 25, 2022
    Member:
    #30247
    Messages:
    39
    Gender:
    Male
    Toronto / GTA, Canada
    Vehicle:
    2020 Limited
    Warranty is 100km / 5 years for engine issues. White smoke is engine issue, I am not out

  16. May 23, 2023 at 3:07 PM
    #16
    Matt83

    Matt83 New Member

    Joined:
    Jul 11, 2019
    Member:
    #10511
    Messages:
    747
    Northeast
    I saw you were in Canada.....

  17. May 23, 2023 at 3:09 PM
    #17
    Luccig

    Luccig [OP] 2020 Limited

    Joined:
    Dec 25, 2022
    Member:
    #30247
    Messages:
    39
    Gender:
    Male
    Toronto / GTA, Canada
    Vehicle:
    2020 Limited
    That's right, canadian warranty is 100km / 5 years for power train

  18. May 23, 2023 at 3:12 PM
    #18
    Matt83

    Matt83 New Member

    Joined:
    Jul 11, 2019
    Member:
    #10511
    Messages:
    747
    Northeast
    Have you smelled the exhaust? Are you noticing any coolant loss?

  19. May 23, 2023 at 3:14 PM
    #19
    Rocko9999

    Rocko9999 New Member

    Joined:
    Apr 21, 2023
    Member:
    #32488
    Messages:
    697
    Vehicle:
    2011 Limited
    Video would help.

  20. May 23, 2023 at 3:15 PM
    #20
    Luccig

    Luccig [OP] 2020 Limited

    Joined:
    Dec 25, 2022
    Member:
    #30247
    Messages:
    39
    Gender:
    Male
    Toronto / GTA, Canada
    Vehicle:
    2020 Limited
    I remember smelling vaguely coolant, when pushed on the highway or high rev, infrequently but I smelled it once or twice.

    Coolant loss minimal / not visible

  21. May 23, 2023 at 3:15 PM
    #21
    Luccig

    Luccig [OP] 2020 Limited

    Joined:
    Dec 25, 2022
    Member:
    #30247
    Messages:
    39
    Gender:
    Male
    Toronto / GTA, Canada
    Vehicle:
    2020 Limited
    thanks

    Last edited: Jun 20, 2023
    anthonydotb likes this.
  22. May 23, 2023 at 3:20 PM
    #22
    JETSPD1477

    JETSPD1477 New

    Joined:
    Nov 30, 2022
    Member:
    #29859
    Messages:
    361
    SoCal
    Vehicle:
    Typical 4Runner
    i can’t tell through my phone screen but is that white or blue smoke?

  23. May 23, 2023 at 3:46 PM
    #23
    WNC2018Limited

    WNC2018Limited New Member

    Joined:
    Apr 15, 2023
    Member:
    #32374
    Messages:
    149
    Gender:
    Male
    If the Toyota dealership claims there is no problem, are they willing to give you a fair offer to trade it in for another 4Runner?

  24. May 23, 2023 at 3:51 PM
    #24
    afret

    afret 2022 ORP, KDSS, Toyo AT3

    Joined:
    Oct 19, 2021
    Member:
    #23882
    Messages:
    497
    Gender:
    Male
    North Idaho
    Looks like there might be a blue tint to the smoke on the first video. Does the smoke stink? Might be oil.

  25. May 23, 2023 at 3:54 PM
    #25
    Luccig

    Luccig [OP] 2020 Limited

    Joined:
    Dec 25, 2022
    Member:
    #30247
    Messages:
    39
    Gender:
    Male
    Toronto / GTA, Canada
    Vehicle:
    2020 Limited
    All White. No smell.

  26. May 23, 2023 at 3:54 PM
    #26
    anthonydotb

    anthonydotb ig: @phantom.rnr

    Joined:
    Oct 25, 2019
    Member:
    #11777
    Messages:
    70
    Gender:
    Male
    First Name:
    Anthony
    Vehicle:
    T4R Trail Edition Premium KDSS
    None yet
    Is it possible that there was too much oil added? Not sure if I've seen anyone mention that. Your oil might be "good" but is there too much? Too much oil can lead to oil overflowing into the piston rings and valve seals. The fix would be to drain some oil. I think our 4runner's take 6.4 quarts or something like that.

  27. May 23, 2023 at 3:57 PM
    #27
    Luccig

    Luccig [OP] 2020 Limited

    Joined:
    Dec 25, 2022
    Member:
    #30247
    Messages:
    39
    Gender:
    Male
    Toronto / GTA, Canada
    Vehicle:
    2020 Limited
    6.6 qts or 6.2 L

    Oil is adequate quantity, thank you for your reply

  28. May 23, 2023 at 4:51 PM
    #28
    Rocko9999

    Rocko9999 New Member

    Joined:
    Apr 21, 2023
    Member:
    #32488
    Messages:
    697
    Vehicle:
    2011 Limited
    Email, call Toyota corporate. File a complaint. It's under warranty. They are usually good about lighting a fire under the dealers ass. Keep rattling the cage.

  29. May 23, 2023 at 4:54 PM
    #29
    hossler1788

    hossler1788 Turtle

    Joined:
    Dec 17, 2020
    Member:
    #18578
    Messages:
    1,745
    Gender:
    Male
    First Name:
    Joshua
    Central Pa
    Vehicle:
    2020 4runner
    If the dealer couldn't find anything why are you worried?

  30. May 23, 2023 at 5:30 PM
    #30
    got4wd

    got4wd New Member

    Joined:
    Mar 28, 2023
    Member:
    #32045
    Messages:
    3
    Gender:
    Male
    Maybe because that’s not normal.

    Rocko9999 likes this.
