Replacing Rusted 99 4Runner Body Part - Don't Know What to Call It

Discussion in '3rd Gen 4Runners (1996-2002)' started by toyotapanda, Mar 19, 2015.

  1. Mar 19, 2015 at 4:24 PM
    #1
    toyotapanda

    toyotapanda [OP] New Member

    Joined:
    Mar 19, 2015
    Member:
    #511
    Messages:
    1
    Hello All

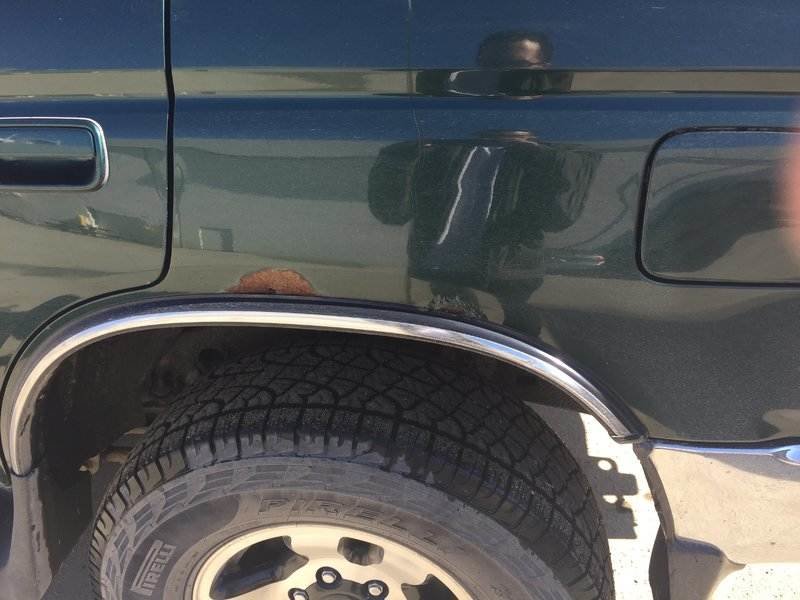

    I'm brand new here. There has been rust accumulating on the left rear body panel above the left rear wheel (see attached picture). I have been looking at replacing it, but I don't know what the body part is called. Does anyone know what the panel is called and where I can buy it? I've tried rear quarter panel, quarter panel, rear side panel but to no avail.

    [​IMG]

    Is it better to sandblast the rust out or replace the entire panel?

    It's a 1999 Toyota 4Runner SR5 V6 AWD in dark green for reference.


    Attached Files:

  2. Mar 20, 2015 at 8:26 PM
    #2
    wnelax04sr5

    wnelax04sr5 Moderator Staff Member

    Joined:
    Apr 6, 2014
    Member:
    #12
    Messages:
    2,534
    Gender:
    Male
    First Name:
    Ethan
    CT
    Vehicle:
    2004 SR5 4X4 Galactic Gray
    well for starters, if its surface rust only, id sand it down and have it repainted just in that spot, it'll be far cheaper than replacing the whole panel, unless you find a relatively inexpensive one that is color matched. as far as the body piece goes, i believe that it isn't a panel, and is rather part of the body shell, therefore it cannot be replaced on its own. hope this helps you out

  3. Mar 20, 2015 at 10:28 PM
    #3
    Emelianenkov

    Emelianenkov New Member Vendor

    Joined:
    Apr 6, 2014
    Member:
    #10
    Messages:
    2,539
    Gender:
    Male
    First Name:
    Alex
    Andover, MA
    Vehicle:
    2005 V6 Sport Salsa Red Pearl
    Everything and practically anything
    To replace that body panel, which is the driver rear fender, or driver rear quarter panel, it would cost you BIG money.

    I had crunched my right rear corner and they would have to replace from the end of the back door to about 1/4 of the way into the rear hatch area. Their estimate was $2,000
    [​IMG]

    I recommend taking a screw driver or awl and gently tap to see if it's just on the surface, or if you're rusted through.

    A good body shop should be able to repair a small rust spot for relatively cheap.

    Bob likes this.
  4. Mar 21, 2015 at 1:37 PM
    #4
    Utah

    Utah Misanthrope

    Joined:
    Jul 31, 2014
    Member:
    #213
    Messages:
    194
    First Name:
    Kevin
    Land of Fake Beer
    Vehicle:
    The Gray Bastard
    3RZ, OME, 5.29s, 4.7, locked/locked
    That's a quarterpanel, and you can't just replace it, I don't think anybody is making that patch panel for the 3rd gen yet. If it's not yet rusted through you can sand it, skim it with bondo, and get some color matched paint in a spray can and make a pretty good repair. If it has rusted through, get some Bushwackers and hide it, because the "right" way to fix it at that point is to cut out the rusted section, fab a piece of sheet metal to match what you cut in, weld it in place, then you're back to bondo and paint. Not easy to do yourself, and not cheap to have a shop do it.

    THatfield and Emelianenkov like this.
  5. Mar 22, 2015 at 9:14 AM
    #5
    Ol'Blue

    Ol'Blue Moderator Staff Member

    Joined:
    Apr 12, 2014
    Member:
    #55
    Messages:
    1,379
    Gender:
    Male
    "Not all who wander are lost"
    Vehicle:
    99 T4R LTD- 33's and locked, 01 SR5-,SAS Sold...
    A few things here and there. Still dreaming up stuff
    Agree 100% with above..... it's going to be a pain in the ass bud.

    Blue
