Let's See Your Mid Travel Set-up (5th Gen)

Discussion in 'Suspension' started by SixthSnail, Mar 12, 2016.

  1. Mar 12, 2016 at 2:47 PM
    #1
    SixthSnail

    SixthSnail [OP] I have no idea what I'm doing

    Joined:
    Jan 24, 2016
    Member:
    #1449
    Messages:
    398
    Gender:
    Male
    First Name:
    Matt
    Los Angeles/Santa Barbara
    Vehicle:
    '16 4Runner SR5 4x4
    Hey guys. I know some people were asking me to make an informative Suspension thread. I think it would be easier to do it this way. Post a pic of your set up, and some information. Follow my example. I will try to compile it into a good list.


    Example:


    2014 SR5 Premium
    [​IMG]

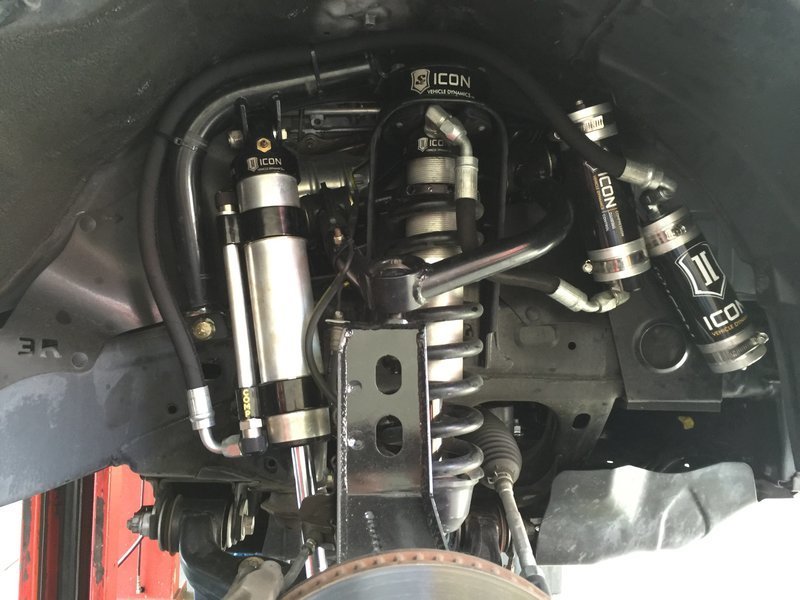

    Front:

    [​IMG]

    Icon RR Coilovers with CDCV
    Icon Tubular UCAs
    Icon S2 Modular Secondary Shock System With Omega Bypass RR Shocks
    SS Extended Brake Lines
    Spindle Gussets

    Rear:
    [​IMG]

    Custom CCS Coils
    Icon Omega RR Shocks
    Icon Hydraulic AirBumps
    Heavy Duty Rear Sway Bar Links


    Stage 5 Icon @RanchoRat

    [​IMG]
    [​IMG] [​IMG]

    Last edited: May 3, 2016
    YotaDan likes this.
  2. Mar 12, 2016 at 2:58 PM
    #2
    SixthSnail

    SixthSnail [OP] I have no idea what I'm doing

    Joined:
    Jan 24, 2016
    Member:
    #1449
    Messages:
    398
    Gender:
    Male
    First Name:
    Matt
    Los Angeles/Santa Barbara
    Vehicle:
    '16 4Runner SR5 4x4
  3. Mar 14, 2016 at 5:19 AM
    #3
    Gluten

    Gluten New Member

    Joined:
    Feb 12, 2016
    Member:
    #1544
    Messages:
    8
    Gender:
    Male
    First Name:
    Jordan
    Vehicle:
    2016 Magnetic Gray 4Runner
    I like the layout! Now we just need some participation. Good job on the threads.

    SixthSnail [OP] likes this.
  4. Mar 14, 2016 at 7:15 AM
    #4
    SixthSnail

    SixthSnail [OP] I have no idea what I'm doing

    Joined:
    Jan 24, 2016
    Member:
    #1449
    Messages:
    398
    Gender:
    Male
    First Name:
    Matt
    Los Angeles/Santa Barbara
    Vehicle:
    '16 4Runner SR5 4x4
    Thanks!

  5. Mar 14, 2016 at 2:15 PM
    #5
    Gluten

    Gluten New Member

    Joined:
    Feb 12, 2016
    Member:
    #1544
    Messages:
    8
    Gender:
    Male
    First Name:
    Jordan
    Vehicle:
    2016 Magnetic Gray 4Runner
    What's your opinion on spacer lifts to at least get a start? @SixthSnail I don't have a ton of money for mods right now but I do take her off road quite often. We have a small rock area and deep ruts here that I seem to high center on or drag my skid plates. Just curious how you guys feel about a leveling kit instead of mid to long travel.

  6. Mar 14, 2016 at 2:19 PM
    #6
    SixthSnail

    SixthSnail [OP] I have no idea what I'm doing

    Joined:
    Jan 24, 2016
    Member:
    #1449
    Messages:
    398
    Gender:
    Male
    First Name:
    Matt
    Los Angeles/Santa Barbara
    Vehicle:
    '16 4Runner SR5 4x4
    I personally hate spacer lifts. I think that in the end, you will regret it. I would say for very little money, to get adjustable bilstein 5100s and some coils for lift. You can use the stock coils on the fronts and crank them up to 2.5" and you can get a 1" lift in the back for like 150 on toytec. Then you will sit level, and be better off than a spacer lift.

    Total cost would come to like 550 and you don't really need the rear lift if you just want to level it. You can set the fronts to like 1.5" and you'll be pretty level.

    Here are the shocks you need. Look on wheelers and you can probably get a deal.

    https://bilsteinlifts.com/shop/toyo...ng-5100-rear-shocks-for-2010-2015-4runner-fj/

    topdec and panzr15 like this.
  7. Mar 14, 2016 at 2:21 PM
    #7
    Gluten

    Gluten New Member

    Joined:
    Feb 12, 2016
    Member:
    #1544
    Messages:
    8
    Gender:
    Male
    First Name:
    Jordan
    Vehicle:
    2016 Magnetic Gray 4Runner
    I appreciate the information man. I'll do some more research on this setup thanks.

  8. Mar 14, 2016 at 2:25 PM
    #8
    SixthSnail

    SixthSnail [OP] I have no idea what I'm doing

    Joined:
    Jan 24, 2016
    Member:
    #1449
    Messages:
    398
    Gender:
    Male
    First Name:
    Matt
    Los Angeles/Santa Barbara
    Vehicle:
    '16 4Runner SR5 4x4
    No problem. I ran that set up in my Tacoma. It is not anything compared to my set up now, but it's a cheap alternative. If you didn't go off road a lot right now, I'd say save up and buy the good stuff. You can get a fox setup with 2.5" coilovers, 2.0" rear shocks with resis and new springs for just over 1500 I think. That is a big hike from Billies though.

  9. Mar 14, 2016 at 2:39 PM
    #9
    csuviper

    csuviper Moderator Staff Member

    Joined:
    Oct 31, 2015
    Member:
    #1119
    Messages:
    119
    Gender:
    Male
    Vehicle:
    Tundra RW 4x4 5.7L
    I agree with the 5100s over spacer lift. Improves the ride vs worsen

    topdec and SixthSnail [OP] like this.
  10. Mar 14, 2016 at 2:42 PM
    #10
    csuviper

    csuviper Moderator Staff Member

    Joined:
    Oct 31, 2015
    Member:
    #1119
    Messages:
    119
    Gender:
    Male
    Vehicle:
    Tundra RW 4x4 5.7L
    That setup is awesome!

  11. Mar 14, 2016 at 2:43 PM
    #11
    SixthSnail

    SixthSnail [OP] I have no idea what I'm doing

    Joined:
    Jan 24, 2016
    Member:
    #1449
    Messages:
    398
    Gender:
    Male
    First Name:
    Matt
    Los Angeles/Santa Barbara
    Vehicle:
    '16 4Runner SR5 4x4
    Thanks! Doesn't your wife's have a mid travel setup? I need more examples!

  12. Mar 14, 2016 at 4:01 PM
    #12
    JerryM

    JerryM New Member

    Joined:
    Dec 20, 2015
    Member:
    #1304
    Messages:
    145
    Gender:
    Male
    First Name:
    jerry
    Vehicle:
    2016 4Runner Trail (KDSS)
    Pending
    Agreed spacers are crap. You will spend almost half that on spacers and the alignment and not like it after two or three trips and then try to sell the spacer kit and get 50 bucks. I have the 6112's front and long travel 5100's in the rear amazing over my buddies taco with spacers. Check out my build and you'll see it. I spent about 2200 with tires.

    SixthSnail [OP] likes this.
  13. Mar 14, 2016 at 4:08 PM
    #13
    SixthSnail

    SixthSnail [OP] I have no idea what I'm doing

    Joined:
    Jan 24, 2016
    Member:
    #1449
    Messages:
    398
    Gender:
    Male
    First Name:
    Matt
    Los Angeles/Santa Barbara
    Vehicle:
    '16 4Runner SR5 4x4
    Would you mind posting it up in the format in the OP so that I can add it to it?

  14. Apr 16, 2016 at 2:56 PM
    #14
    smkymntn

    smkymntn New Member

    Joined:
    Mar 18, 2016
    Member:
    #1732
    Messages:
    31
    Gender:
    Male
    First Name:
    Adam
    Vehicle:
    2014 T4R SR%
    3" toytect lift, Magnaflow, TRD intake, Xenon depot LED fog and high, HID low beam, antidark underhood lighting, LED bar mounted in grill, Ram mount phone mount, 20% tint all around, BFG KO2 275/70-17 on SCS Stealth 6 Silver wheels, Nfab side steps, Weathertech mats with TRD tags, Vintage Toyota shifter, Carista software tweak. Sprint Booster, LED drl upgrade.
    My set up is Toytec 3" spring lift, bilstein 5100s and SPC UCA. Not sure if that qualifies as mid travel. I can post pics once uca's and shocks are installed.

    SixthSnail [OP] likes this.
  15. Apr 26, 2016 at 8:32 AM
    #15
    SixthSnail

    SixthSnail [OP] I have no idea what I'm doing

    Joined:
    Jan 24, 2016
    Member:
    #1449
    Messages:
    398
    Gender:
    Male
    First Name:
    Matt
    Los Angeles/Santa Barbara
    Vehicle:
    '16 4Runner SR5 4x4
    Anybody help get more pics in the OP! haha

  16. May 2, 2016 at 6:49 PM
    #16
    smkymntn

    smkymntn New Member

    Joined:
    Mar 18, 2016
    Member:
    #1732
    Messages:
    31
    Gender:
    Male
    First Name:
    Adam
    Vehicle:
    2014 T4R SR%
    3" toytect lift, Magnaflow, TRD intake, Xenon depot LED fog and high, HID low beam, antidark underhood lighting, LED bar mounted in grill, Ram mount phone mount, 20% tint all around, BFG KO2 275/70-17 on SCS Stealth 6 Silver wheels, Nfab side steps, Weathertech mats with TRD tags, Vintage Toyota shifter, Carista software tweak. Sprint Booster, LED drl upgrade.
    I'll post up once I get my UCA and 5100s on this friday

    Palerider likes this.
  17. May 2, 2016 at 8:56 PM
    #17
    RanchoRat

    RanchoRat New Member

    Joined:
    Mar 26, 2016
    Member:
    #1772
    Messages:
    74
    Gender:
    Male
    Vehicle:
    2012 Black 4Runner
    Stage 5 Icon Suspension, 285/70/17 Pro Comp AT Sport, Procomp Series 40 Wheels.
    Stage 5 Icon


    Palerider and jester243 like this.
  18. May 3, 2016 at 10:04 AM
    #18
    SixthSnail

    SixthSnail [OP] I have no idea what I'm doing

    Joined:
    Jan 24, 2016
    Member:
    #1449
    Messages:
    398
    Gender:
    Male
    First Name:
    Matt
    Los Angeles/Santa Barbara
    Vehicle:
    '16 4Runner SR5 4x4
    Nice! How do you like the Trailing Arms? I'm looking to upgrade when I pay off my bumper.

  19. May 3, 2016 at 4:21 PM
    #19
    RanchoRat

    RanchoRat New Member

    Joined:
    Mar 26, 2016
    Member:
    #1772
    Messages:
    74
    Gender:
    Male
    Vehicle:
    2012 Black 4Runner
    Stage 5 Icon Suspension, 285/70/17 Pro Comp AT Sport, Procomp Series 40 Wheels.
    I love them. Kind of that sleeper look. Give that added pop to the aesthetics when you realize they are there. Im very pleased.

  20. Apr 12, 2017 at 1:40 PM
    #20
    mouse007

    mouse007 New Member

    Joined:
    Apr 12, 2017
    Member:
    #3867
    Messages:
    21
    Gender:
    Male
    First Name:
    Mauricio
    Vehicle:
    2016 - 4Runner Trail w/o KDSS.
    O.E.
    Question, i'm starting to work on my Trail.

    I have the front set up already, ICON's with the CDC vale and the Tubular UCA.

    What do you all recommend for the rear..? I think I'll go with ICON as well, but how important or better yet, how much of a benefit will a Track Bar, Upper & Lower Rear Links be..? IS this a MUST have right away..?

    So far i'm thinking of 2" springs mated with 56505 Shocks. Any problems with the O.E. break-lines like the Tacoma..?

  21. Apr 18, 2017 at 8:04 AM
    #21
    RanchoRat

    RanchoRat New Member

    Joined:
    Mar 26, 2016
    Member:
    #1772
    Messages:
    74
    Gender:
    Male
    Vehicle:
    2012 Black 4Runner
    Stage 5 Icon Suspension, 285/70/17 Pro Comp AT Sport, Procomp Series 40 Wheels.
    The rear track bars are worth the money for tuning the rear end travel. Adjustability is key. I have my OEM brake lines and have flexed that rear end to its limits many a time and have had zero issues.

    mouse007 likes this.
  22. Apr 18, 2017 at 8:54 AM
    #22
    mouse007

    mouse007 New Member

    Joined:
    Apr 12, 2017
    Member:
    #3867
    Messages:
    21
    Gender:
    Male
    First Name:
    Mauricio
    Vehicle:
    2016 - 4Runner Trail w/o KDSS.
    O.E.
    @RanchoRat thank you, do you also have the Upper & Lowers..? What shocks are you running..?

  23. Apr 18, 2017 at 9:14 AM
    #23
    RanchoRat

    RanchoRat New Member

    Joined:
    Mar 26, 2016
    Member:
    #1772
    Messages:
    74
    Gender:
    Male
    Vehicle:
    2012 Black 4Runner
    Stage 5 Icon Suspension, 285/70/17 Pro Comp AT Sport, Procomp Series 40 Wheels.
    I'm running the V.S. 2.5 remote resivoir rear shocks that came with my stage 5 kit. No aftermarket links yet.

    mouse007 likes this.
  24. Apr 18, 2017 at 10:06 AM
    #24
    Dark Knight

    Dark Knight New Member

    Joined:
    Sep 18, 2016
    Member:
    #2681
    Messages:
    288
    Gender:
    Male
    First Name:
    Jeff
    King, Camburg, Icon, and Toytec mixture.

    IMG_0568.jpg IMG_1340.jpg IMG_0461.jpg

  25. May 23, 2017 at 1:19 PM
    #25
    5thGen4Runner2015

    5thGen4Runner2015 New Member

    Joined:
    Apr 22, 2017
    Member:
    #3928
    Messages:
    131
    Gender:
    Male
    Vehicle:
    2015 Magnetic Grey Toyota 4Runner SR5
    I'm in the same boat at the moment... trying to decide if I should install some used spacers I got for $35 since I spent a lot on new wheels and tires, and eventually get the 5100's. Or if I should just hold off altogether on the leveling kit until I have enough to purchase and install the Bilsteins. What did you end up going with?

  26. Feb 8, 2018 at 8:36 PM
    #26
    CO_SKI

    CO_SKI New Member

    Joined:
    Jan 27, 2018
    Member:
    #5387
    Messages:
    3
    Gender:
    Male
    First Name:
    Justin
    Sacramento Area
    Vehicle:
    '18 TRD-OR w/ KDSS
    N/A att
    How do you like your Icon piece for the track bar?

  27. Feb 12, 2018 at 4:58 PM
    #27
    Dark Knight

    Dark Knight New Member

    Joined:
    Sep 18, 2016
    Member:
    #2681
    Messages:
    288
    Gender:
    Male
    First Name:
    Jeff
    I have the lower links, not the track bar.

  28. Feb 12, 2018 at 8:01 PM
    #28
    CO_SKI

    CO_SKI New Member

    Joined:
    Jan 27, 2018
    Member:
    #5387
    Messages:
    3
    Gender:
    Male
    First Name:
    Justin
    Sacramento Area
    Vehicle:
    '18 TRD-OR w/ KDSS
    N/A att
    Ah sorry. Well for the lower links then how do you like it? I am still learning my way around the T4R's suspension for the rear.

  29. Feb 13, 2018 at 4:29 AM
    #29
    Dark Knight

    Dark Knight New Member

    Joined:
    Sep 18, 2016
    Member:
    #2681
    Messages:
    288
    Gender:
    Male
    First Name:
    Jeff
    They work well. I think they would work better if I had the uppers to match but overall, the KDSS will be the limiting factor for my rear suspension. The extra strength is nice to have.

  30. Feb 15, 2018 at 5:23 PM
    #30
    CO_SKI

    CO_SKI New Member

    Joined:
    Jan 27, 2018
    Member:
    #5387
    Messages:
    3
    Gender:
    Male
    First Name:
    Justin
    Sacramento Area
    Vehicle:
    '18 TRD-OR w/ KDSS
    N/A att
    How much more droop do you think you could actually get if you removed the sway bars and KDSS system?
