Installing CB radio in ashtray location *lots and lots of pictures*

Discussion in '3rd Gen 4Runners (1996-2002)' started by ramonortiz55, Jan 14, 2016.

  1. Jan 14, 2016 at 8:40 PM
    #1
    ramonortiz55

    ramonortiz55 [OP] New Member

    Joined:
    May 3, 2015
    Member:
    #590
    Messages:
    1,663
    Gender:
    Male
    First Name:
    Ramon
    Vehicle:
    2001 4runner limited silver millenium
    I had my TWSS give me a Uniden PRO 520XL cb radio for my 4runner build.

    Thanks bud @adanfon

    [​IMG]

    [​IMG]

    The thing with these cb radios is that they fit PERFECTLY in the ashtray location on the 3rd gen 4runners.

    Give you a clean, stockish look:

    [​IMG]

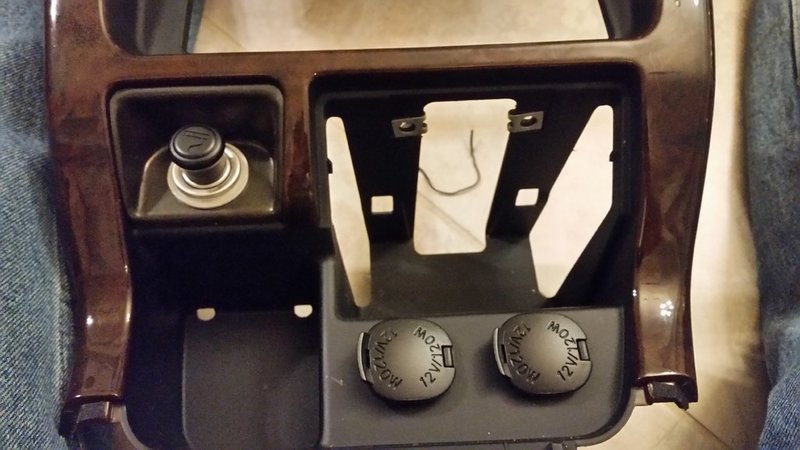

    To be able to achieve this, I remove the radio/ac bezel on the 4runner:

    [​IMG]

    I pulled the ashtray out and remove these two screws:

    [​IMG]

    [​IMG]

    [​IMG]

    Test fitting the CB radio:

    [​IMG]

    Trimmed the end brackets off with a dremmel tool and test fitted again:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Used two strips of velcro between the plastic prongs and the top of the radio.

    This holds the CB radio in place:

    [​IMG]

    Connected my PL59 connector:

    [​IMG]

    Dont forget to order pizza. If you dont, this MOD will NOT WORK:

    [​IMG]

    Looks like Arizona is winning:

    [​IMG]

    So now I proceed to run the coaxial wiring for the cb radio. The mount installs in the back hatch:

    [​IMG]

    [​IMG]

    [​IMG]

    Picked up the firering coaxial cable, the 18 feet version:

    [​IMG]

    I ran the coaxial cable from the front of the 4runner towards the back:

    [​IMG]

    Under the carpet on the driver's side:

    [​IMG]

    Under the door floor plastic panel front and rear:

    [​IMG]

    I then removed the plastic paneling in the rear driver's side area by the seat:

    [​IMG]

    Removed the driver's side back cargo paneling:

    [​IMG]

    [​IMG]

    Ran it thru this yellow vent thing:

    [​IMG]

    Here it is!

    [​IMG]

    I then hid it from view by running it behind the bumper:

    [​IMG]

    [​IMG]

    Made sure to install the cable like this:

    [​IMG]

    [​IMG]

    brnt2180, UssMoGn, Molina4*4 and 2 others like this.
  2. Mar 2, 2016 at 7:40 PM
    #2
    T4runner97

    T4runner97 New Member

    Joined:
    Mar 2, 2016
    Member:
    #1655
    Messages:
    1
    Gender:
    Male
    First Name:
    Ricky
    Vehicle:
    97 4runner limted 4x4
    Where can i buy that bracket, i cant seem to find it on the t4r forum. I would much appreciate it

  3. Mar 4, 2016 at 7:38 PM
    #3
    ramonortiz55

    ramonortiz55 [OP] New Member

    Joined:
    May 3, 2015
    Member:
    #590
    Messages:
    1,663
    Gender:
    Male
    First Name:
    Ramon
    Vehicle:
    2001 4runner limited silver millenium
    @MStudt has them

  4. Jul 4, 2016 at 5:58 AM
    #4
    j cat

    j cat New Member

    Joined:
    Jun 28, 2016
    Member:
    #2223
    Messages:
    530
    massachusetts
    spacer lift front 1inch
    how did you remove the " Under the door floor plastic panel front and rear ". I could not lift the outer edge just got the carpet side to release. paint side feels like an adhesive .

    I want to run wires to the rear . thanks for any help .

  5. Jul 5, 2016 at 7:11 PM
    #5
    ramonortiz55

    ramonortiz55 [OP] New Member

    Joined:
    May 3, 2015
    Member:
    #590
    Messages:
    1,663
    Gender:
    Male
    First Name:
    Ramon
    Vehicle:
    2001 4runner limited silver millenium
    after you remove the screws, it pops off.

    Remember to remove the kick panel to the left of your foot FIRST.

  6. Jul 6, 2016 at 6:27 PM
    #6
    j cat

    j cat New Member

    Joined:
    Jun 28, 2016
    Member:
    #2223
    Messages:
    530
    massachusetts
    spacer lift front 1inch
    no screws visible . are the screws outside under the rockers plastic shield ?

    I got the full length of this plastic to release along the carpet but not on the side by the paint it does appear screwed down. carpet side did pop up .

    could be a change by toyota... this is a 2016 T4R.

  7. Feb 21, 2019 at 8:19 AM
    #7
    RidgeMan

    RidgeMan New Member

    Joined:
    Jan 9, 2019
    Member:
    #8383
    Messages:
    20
    Gender:
    Male
    Vehicle:
    2014 4Runner SR5 (silver)
    I see this is an old thread, but does anyone know how to release the plastic panel along the bottom of the rear door (between the carpet and door seal)

    Thanks!




    PastorBillV likes this.
