Disabling ABS, TRAC, and VSC **PICTURES**

Discussion in '3rd Gen 4Runners (1996-2002)' started by ramonortiz55, Dec 18, 2015.

  1. Dec 18, 2015 at 9:31 PM
    #1
    ramonortiz55

    ramonortiz55 [OP] New Member

    Joined:
    May 3, 2015
    Member:
    #590
    Messages:
    1,665
    Gender:
    Male
    First Name:
    Ramon
    Vehicle:
    2001 4runner limited silver millenium
    A few weeks ago I was out wheeling with a few friends and I came to realize that I need to do something about disabling traction control, Anti lock break system, and Vehicle stability control.

    These items where added to the late 3rd generation 4runners, I believe 2000, 2001, and 2002.
    Having these kick in while offroading was annoying as hell!

    I figured I needed to do something about it, and do it now!

    After doing a little research, I found out exactly what I needed to do and decided to do my own write up on it:

    For this modification I used about 8 feet of 16 gauge wire and toyota fog light switch part number:

    [​IMG]

    The switch looks like this:

    [​IMG]

    Prongs in the back:

    [​IMG]

    I cut the 8 foot wire into two four foot sections and fed it thru the firewall grommet located in a spot below the master cylinder:

    [​IMG]

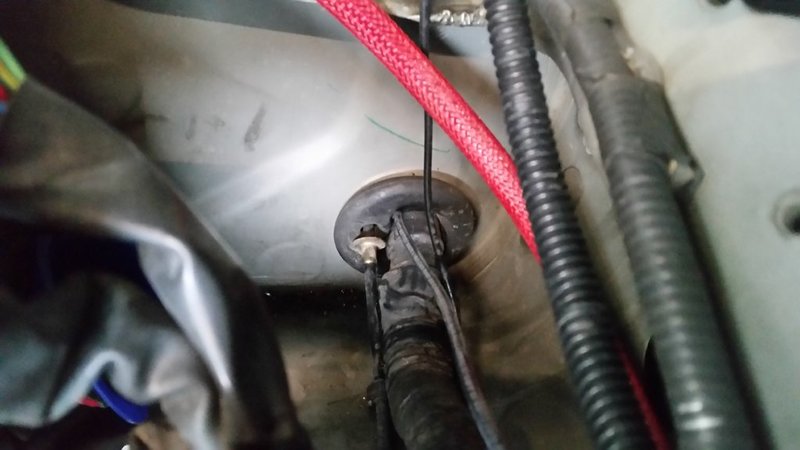

    I used a thicker gauge black wire to help me fish the red wiring thru:

    [​IMG]

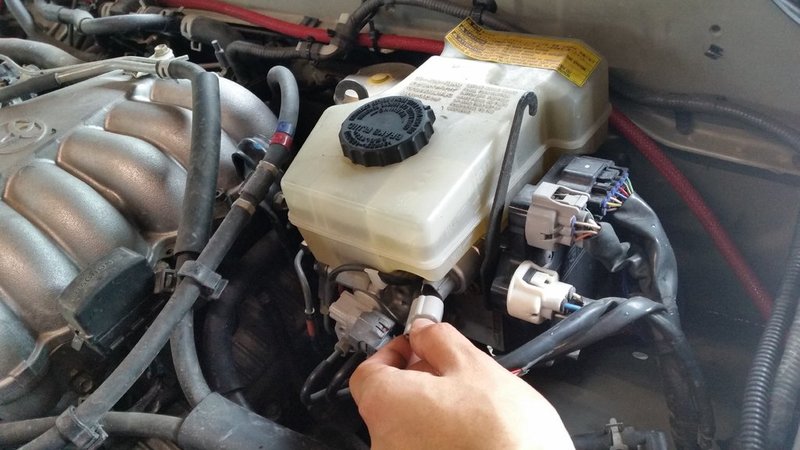

    I then located the master cylinder and unplugged the wiring shown below:

    [​IMG]

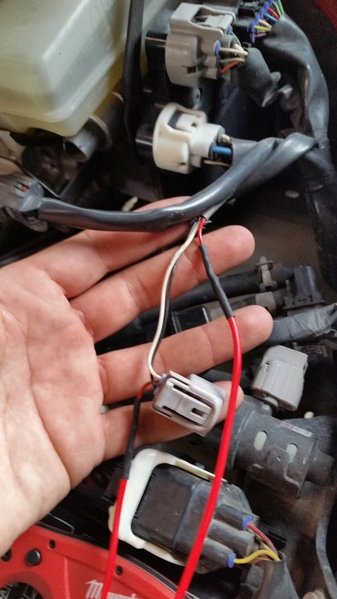

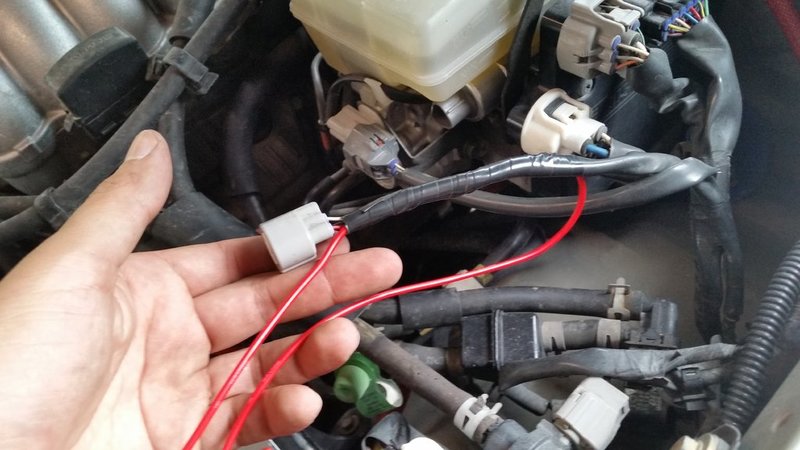

    Within the wiring on that specific harness, is a 18 gauge red wire, I cut this wire and "extended" both ends using the wiring I fished thru the grommet.

    [​IMG]

    Shrink wrapped for waterproofing:

    [​IMG]

    Then taped for even more waterproofing:

    [​IMG]

    On the other end, inside the cabin, I connected some spade connectors:

    [​IMG]

    [​IMG]

    Fished the end thru a blank on my dash:

    [​IMG]

    Plugged the spade connectors:

    [​IMG]

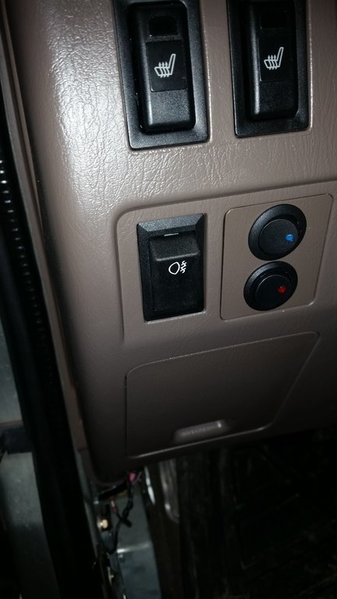

    Placed my switch in the stock location:

    [​IMG]

    Now to test the mod!

    I turned the truck on, and flipped the switch:

    [​IMG]

    Indicator lights tell me that TRAC, VSC, and ABS have been disabled!

    To enable TRAC, VSC, and ABS, you will need to flip the switch to the "off" position and restart the truck.

    The TRAC, VSC, and ABS will NOT reset while the truck is on. You must restart the vehicle.

    I am perfectly fine with that.

    Icon_Adrian likes this.
  2. Dec 20, 2015 at 4:17 AM
    #2
    tmcnamee

    tmcnamee New Member

    Joined:
    Dec 16, 2015
    Member:
    #1292
    Messages:
    9
    Gender:
    Male
    First Name:
    Tom
    Vehicle:
    2005 four runner
    Ramon,
    Thanks for posting. Had the same issue last year when it snowed in SC (unusual). As you said very annoying and took forever to get up our driveway. Do you think this will work on a 2005 4R?
    Best, Tom

  3. Dec 21, 2015 at 7:29 PM
    #3
    ramonortiz55

    ramonortiz55 [OP] New Member

    Joined:
    May 3, 2015
    Member:
    #590
    Messages:
    1,665
    Gender:
    Male
    First Name:
    Ramon
    Vehicle:
    2001 4runner limited silver millenium
    that would be a 4th gen 4runner. I do not know if it would work.

    Check and see if you have the same brake cylinder setup?

  4. Mar 26, 2017 at 3:15 PM
    #4
    Frankenyota

    Frankenyota New Member

    Joined:
    Mar 26, 2017
    Member:
    #3770
    Messages:
    1
    Gender:
    Male
    Vehicle:
    2002 3rd gen 4runner
    Did it and it worked great. No hangups good advice.

  5. Mar 27, 2017 at 5:34 AM
    #5
    ramonortiz55

    ramonortiz55 [OP] New Member

    Joined:
    May 3, 2015
    Member:
    #590
    Messages:
    1,665
    Gender:
    Male
    First Name:
    Ramon
    Vehicle:
    2001 4runner limited silver millenium
    I am glad it worked out for you bud!

  6. Apr 1, 2017 at 2:11 PM
    #6
    RioT4R

    RioT4R New Member

    Joined:
    Apr 1, 2017
    Member:
    #3805
    Messages:
    59
    Gender:
    Male
    First Name:
    Austyn
    Virginia Beach, VA
    Vehicle:
    2019 Silver Off Road Premium
    Bilsteins, Dobinsons, Pizza cutters
    Awesome write up! Will try this out in the future!

  7. Apr 2, 2017 at 11:58 AM
    #7
    ramonortiz55

    ramonortiz55 [OP] New Member

    Joined:
    May 3, 2015
    Member:
    #590
    Messages:
    1,665
    Gender:
    Male
    First Name:
    Ramon
    Vehicle:
    2001 4runner limited silver millenium
    let me know how it works out!

  8. Apr 5, 2017 at 8:16 PM
    #8
    trdsport

    trdsport New Member

    Joined:
    Mar 17, 2017
    Member:
    #3719
    Messages:
    10
    Gender:
    Male
    First Name:
    paul
    Vehicle:
    2002 4RunnerSR5
    Stock
    Nice Mod & write up !! Its interesting..i just bought this 2002 4r & as you showed in the dash pic for testing the mod, my dash always lights up VSC off & VSC trac constantly(means no trac control or stab control). But it does not light up ABS. I wonder if the PO did similar stuff..or perhaps something else is going on. Yet to explore.

  9. Oct 25, 2017 at 4:41 PM
    #9
    Jfreeman

    Jfreeman New Member

    Joined:
    Oct 25, 2017
    Member:
    #4941
    Messages:
    7
    Gender:
    Male
    First Name:
    Jay
    Vehicle:
    2001 4runner
    I tried this mod today, and the only problem is, that the switch has to be on the on position for the lights to go away. What did I do wrong?

  10. Oct 25, 2017 at 4:46 PM
    #10
    ramonortiz55

    ramonortiz55 [OP] New Member

    Joined:
    May 3, 2015
    Member:
    #590
    Messages:
    1,665
    Gender:
    Male
    First Name:
    Ramon
    Vehicle:
    2001 4runner limited silver millenium
    So does that mean that you have to switch it in the off position to make the lights come back on? (ABS, VSC, TRAC OFF)

  11. Oct 25, 2017 at 4:55 PM
    #11
    Jfreeman

    Jfreeman New Member

    Joined:
    Oct 25, 2017
    Member:
    #4941
    Messages:
    7
    Gender:
    Male
    First Name:
    Jay
    Vehicle:
    2001 4runner
  12. Oct 25, 2017 at 4:56 PM
    #12
    Jfreeman

    Jfreeman New Member

    Joined:
    Oct 25, 2017
    Member:
    #4941
    Messages:
    7
    Gender:
    Male
    First Name:
    Jay
    Vehicle:
    2001 4runner
    I used 18 gauge wire instead of the 16, but I wouldn't think that would be a problem

  13. Oct 25, 2017 at 4:59 PM
    #13
    ramonortiz55

    ramonortiz55 [OP] New Member

    Joined:
    May 3, 2015
    Member:
    #590
    Messages:
    1,665
    Gender:
    Male
    First Name:
    Ramon
    Vehicle:
    2001 4runner limited silver millenium
    maybe youre wiring is backwards on the back of the switch...

    Switch the wires on the back terminals and see if that fixes

  14. Oct 25, 2017 at 5:03 PM
    #14
    Jfreeman

    Jfreeman New Member

    Joined:
    Oct 25, 2017
    Member:
    #4941
    Messages:
    7
    Gender:
    Male
    First Name:
    Jay
    Vehicle:
    2001 4runner
    Tried that, and still the same thing

  15. Oct 25, 2017 at 5:05 PM
    #15
    ramonortiz55

    ramonortiz55 [OP] New Member

    Joined:
    May 3, 2015
    Member:
    #590
    Messages:
    1,665
    Gender:
    Male
    First Name:
    Ramon
    Vehicle:
    2001 4runner limited silver millenium
    did you use the same switch part number as referenced above?

  16. Oct 25, 2017 at 5:10 PM
    #16
    Jfreeman

    Jfreeman New Member

    Joined:
    Oct 25, 2017
    Member:
    #4941
    Messages:
    7
    Gender:
    Male
    First Name:
    Jay
    Vehicle:
    2001 4runner
    I tried two different switches

  17. Oct 25, 2017 at 5:23 PM
    #17
    Jfreeman

    Jfreeman New Member

    Joined:
    Oct 25, 2017
    Member:
    #4941
    Messages:
    7
    Gender:
    Male
    First Name:
    Jay
    Vehicle:
    2001 4runner
    Just to clarify, my switch has to be on the on position for the lights to go away. Then the switch has to on the off position for the lights to come on. I don't understand how the switch is on the off position, then on for it to work

  18. Oct 25, 2017 at 5:40 PM
    #18
    ramonortiz55

    ramonortiz55 [OP] New Member

    Joined:
    May 3, 2015
    Member:
    #590
    Messages:
    1,665
    Gender:
    Male
    First Name:
    Ramon
    Vehicle:
    2001 4runner limited silver millenium
    that is very random

  19. Oct 25, 2017 at 5:40 PM
    #19
    ramonortiz55

    ramonortiz55 [OP] New Member

    Joined:
    May 3, 2015
    Member:
    #590
    Messages:
    1,665
    Gender:
    Male
    First Name:
    Ramon
    Vehicle:
    2001 4runner limited silver millenium
    im clueless

  20. Oct 25, 2017 at 5:45 PM
    #20
    Jfreeman

    Jfreeman New Member

    Joined:
    Oct 25, 2017
    Member:
    #4941
    Messages:
    7
    Gender:
    Male
    First Name:
    Jay
    Vehicle:
    2001 4runner
    I'll keep you posted on my find

  21. Oct 25, 2017 at 11:31 PM
    #21
    Husky Driver

    Husky Driver Kyna's chauffeur

    Joined:
    May 21, 2014
    Member:
    #140
    Messages:
    79
    Gender:
    Male
    First Name:
    Kipp
    40°35'09.0"N 105°04'38.3"W
    Vehicle:
    2k T4R3 SR5 Highlander Sport TRD
    Toytec Ultimate 3" lift susp w/ OME 891 rear coils, Bilstein 5100 shocks front & 5125 rear, ARB 'Roo Bar, Warn VR10k, 0.7, 2 & 11-meter 2 way radios FCC Lic KE0TDD, Nitrogen inflated 33" BFGoodrich All-Terrain T/A KO2s, FlexFuel E-85 conversion, AFe lifetime filter, Savage Offroad rock sliders, Ryno All Terrain 4.5mm skid plates, Line-X coatings on the armor, LifetimeLED & Rigid Industries LED headlights, UltraGauge 1.2, T3q 4.10 eLocker with armor from LROR, AmsOil lubricants used throughout. CBI plate rear bumper with swingaway, SPC Light Racing UCAs, ARB SS170HF Safari snorkel w/ Afrikaans centrifugal pre-cleaner, Tacoma antenna mod, TRD Supercharger w/ URD 7th inj. & URD pulleys, Anti-Dark engine bay lighting system. Having gone 250k, Aug 2016 was the time to replace the original clutch & get the driver's seat rebuilt/stuffed. Front & back Weathertech liners. '05 Tundra front disc brake swap. Full length Rocky Mountain Rack with 40" lightbar, Alternating strobe rear dust lights. I used a warm weekend in March 2022 to finally install my brand new from old stock 2000 4Runner driver's seat. $800 directly from the factory in Sapporo, Hokkaido, Japan.
    Another way of disabling ABS on a 3rd gen is: If you already have an Ultragauge 1.2, simply remove the ISO-9141 isolation cable from between the Ultragauge & the OBD2 plug.

  22. Oct 26, 2017 at 5:54 AM
    #22
    ramonortiz55

    ramonortiz55 [OP] New Member

    Joined:
    May 3, 2015
    Member:
    #590
    Messages:
    1,665
    Gender:
    Male
    First Name:
    Ramon
    Vehicle:
    2001 4runner limited silver millenium
    this just blew my mind

  23. Oct 26, 2017 at 5:54 AM
    #23
    ramonortiz55

    ramonortiz55 [OP] New Member

    Joined:
    May 3, 2015
    Member:
    #590
    Messages:
    1,665
    Gender:
    Male
    First Name:
    Ramon
    Vehicle:
    2001 4runner limited silver millenium
    Please keep us posted!

    Threads with issues like this is what keeps the forum informative :thumbsup:

  24. May 2, 2018 at 11:41 AM
    #24
    Elmo the Destroyer

    Elmo the Destroyer New Member

    Joined:
    Apr 26, 2018
    Member:
    #5909
    Messages:
    19
    Gender:
    Male
    First Name:
    Nathan
    OKC Area
    Vehicle:
    2007 Black 4Runner (2wd 4L V6)
    Hi, excellent write up! I am going to attempt this mod on my 2007 2wd, but I am assembling a custom auxiliary switchboard because I like the feel of it better. Does anybody know if there are specific requirements for the switch? Might need to match a certain voltage. I have a house light switch sitting in my tool box, but I'm not so sure it would actually work.
