Cylinder 1 misfire help 3rd gen 4runner

Discussion in '3rd Gen 4Runners (1996-2002)' started by Mrjab13, Mar 8, 2025.

  1. Mar 8, 2025 at 9:32 PM
    #1
    Mrjab13

    Mrjab13 [OP] The Nyahhhh Machine

    Joined:
    Mar 8, 2025
    Member:
    #45943
    Messages:
    6
    Gender:
    Male
    Vehicle:
    1997 Toyota 4runner SR5
    Bilstein 5100, BTF upper and lower control arms, Underdog Racing Headers
    Hello everyone,
    I have a 1997 Toyota 4runner sr5. Currently I'm having trouble with a cylinder 1 misfire. Starting Jan 2025 my mechanic friend did a head gasket on my vehicle along with underdog race headers and fuel injectors. A week after the job I got a cylinder 1 misfire. Here is what I've changed so far to fix the issue.
    Spark plugs denso dual node
    Ignition coil packs. Had denso had to buy ena ones off Amazon
    NGK Spark plugs wires
    Had to replace intake and a few vacuum lines
    Did a compression test and got 150 on all 6 cylinders.
    Did a leak down test on cylinder 1 and that was good.
    Tested the shims of the valves with my friend and the valves are not tight and within spec.

    My guess its like a ghost code or computer related. It runs well for the most part. Sometimes it'll idle low. When the code triggers I don't feel much when it happens. But it's getting annoying.

    Any advice or other things it might be?
    Let me know what y'all have heard


  2. Mar 8, 2025 at 11:11 PM
    #2
    negusm

    negusm New Member

    Joined:
    Oct 22, 2019
    Member:
    #11745
    Messages:
    2,259
    Gender:
    Male
    Vehicle:
    2002 4Runner SR5 4WD
    Did you swap the #1 injector to see if the misfire moves? Sounds like things would have changed if it was a plug/coil pack/wires.

    Superdave1.0 likes this.
  3. Mar 8, 2025 at 11:59 PM
    #3
    Mrjab13

    Mrjab13 [OP] The Nyahhhh Machine

    Joined:
    Mar 8, 2025
    Member:
    #45943
    Messages:
    6
    Gender:
    Male
    Vehicle:
    1997 Toyota 4runner SR5
    Bilstein 5100, BTF upper and lower control arms, Underdog Racing Headers
    I haven't tried that yet. If it moves then I'll know if it's that injector. I tested the ohms of injector 1,3, and 5 and they were all around 18 I think. I'll give an update when I do try that.

  4. Mar 17, 2025 at 4:17 AM
    #4
    blinktwice

    blinktwice New Member

    Joined:
    Jan 22, 2025
    Member:
    #45147
    Messages:
    39
    Gender:
    Male
    Vehicle:
    2000 4Runner Limited
    3" suspension lift 33" tires Magnaflow outlander exhaust
    I'd bet injector also

  5. May 8, 2025 at 8:30 PM
    #5
    eagle_one_limited

    eagle_one_limited New Member

    Joined:
    Aug 26, 2020
    Member:
    #16351
    Messages:
    14
    Gender:
    Male
    First Name:
    Gonzo
    Los Angeles, CA
    Vehicle:
    2002 limited 4runner 2wd
    How's your 4runner running? Did you figure it out? I have a similar issue with mine

  6. May 8, 2025 at 8:58 PM
    #6
    Mrjab13

    Mrjab13 [OP] The Nyahhhh Machine

    Joined:
    Mar 8, 2025
    Member:
    #45943
    Messages:
    6
    Gender:
    Male
    Vehicle:
    1997 Toyota 4runner SR5
    Bilstein 5100, BTF upper and lower control arms, Underdog Racing Headers

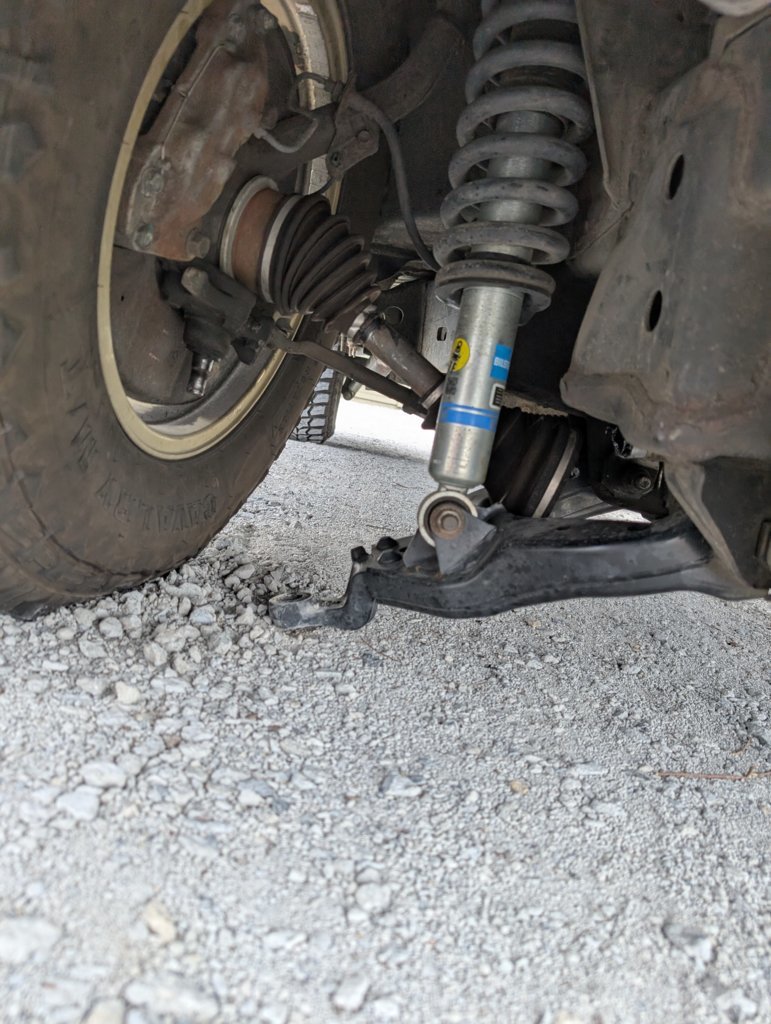

    Okay so update. I first was running premium gas and that solved the check engine for a bit. I just recently had time to switch injector 1 and 3 to see if it switches because my lower ball joint popped going into my driveway. So, I had to fix that first. I'll be driving it this weekend to see if it is the injector. My guess it is going to be the injector.


  7. May 8, 2025 at 10:27 PM
    #7
    Superdave1.0

    Superdave1.0 New Member

    Joined:
    Jun 25, 2020
    Member:
    #15128
    Messages:
    237
    Gender:
    Male
    Vehicle:
    LX470, 2025 Civic Si
    Who installed that lower ball joint? That's not normally how they pop. Someone failed on the install.

  8. May 8, 2025 at 11:57 PM
    #8
    Mrjab13

    Mrjab13 [OP] The Nyahhhh Machine

    Joined:
    Mar 8, 2025
    Member:
    #45943
    Messages:
    6
    Gender:
    Male
    Vehicle:
    1997 Toyota 4runner SR5
    Bilstein 5100, BTF upper and lower control arms, Underdog Racing Headers

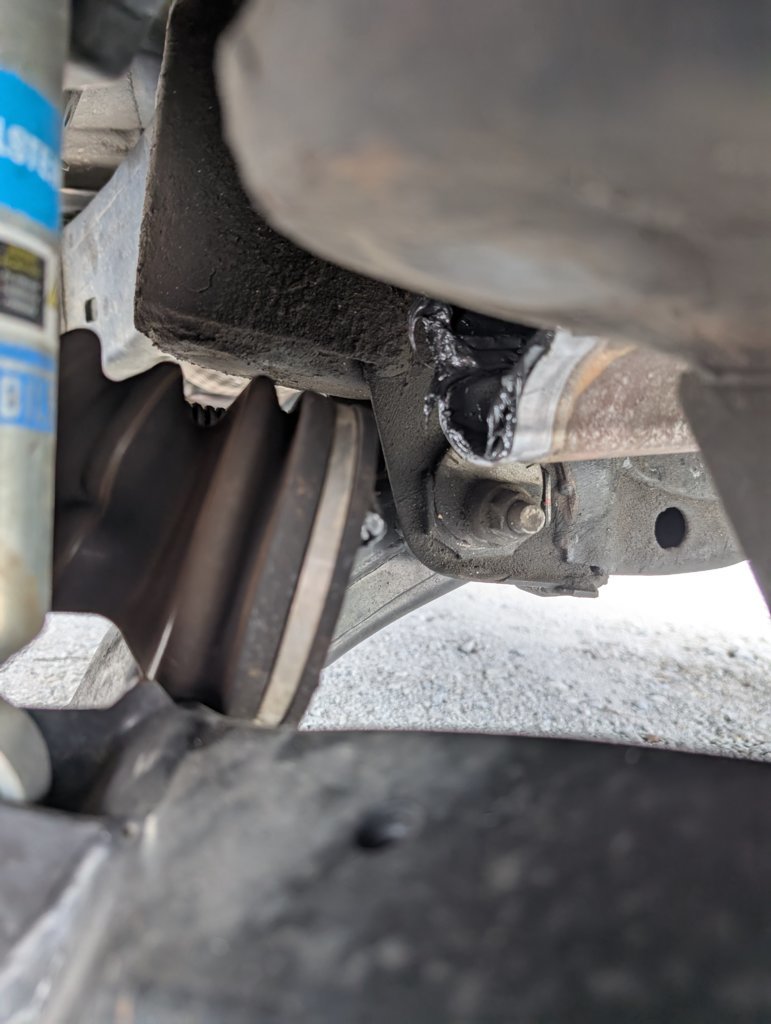

    It was some shop where I live but the bolt on the ball joint just slipped off and stripped the threading somehow.
    I installed new lower controls arms, ball joints, and an axle.

  9. May 9, 2025 at 12:22 AM
    #9
    Trekker

    Trekker Regular Member

    Joined:
    Jul 25, 2020
    Member:
    #15732
    Messages:
    1,075
    Gender:
    Male
    Vehicle:
    1997 3rz 5spd
    That sucks, there I good chance you ruined your CV axle (maybe not, nothing has to break for it to come out like that) and you can't get good new ones anymore.

    If a shop did install it I'd warranty their work, I wouldn't trust them to do it again, but you should get refunded because that's not something that happens without improper installation if you used quality parts.

    Superdave1.0 likes this.
  10. May 9, 2025 at 4:54 PM
    #10
    Mrjab13

    Mrjab13 [OP] The Nyahhhh Machine

    Joined:
    Mar 8, 2025
    Member:
    #45943
    Messages:
    6
    Gender:
    Male
    Vehicle:
    1997 Toyota 4runner SR5
    Bilstein 5100, BTF upper and lower control arms, Underdog Racing Headers
    So the check engine light moved from p0301 to p0300. I deleted the code and it came back as p0303 which is the injector I switched. Going to buy a new injector and see if that does the job.

    roboturner likes this.
