2024 Off-road suspension questions

Discussion in '5th Gen 4Runners (2010-2024)' started by TejasRunner, Jul 9, 2024.

  1. Jul 9, 2024 at 7:01 PM
    #1
    TejasRunner

    TejasRunner [OP] New Member

    Joined:
    Aug 27, 2016
    Member:
    #2561
    Messages:
    83
    Gender:
    Male
    I have a deposit down on a new 2024 Off-road Premium. I currently have a 2016 Trail Premium.

    Does the 2024 OR nosedive on hard braking?

    To counter this issue on the 2016, I installed Toytec Boss shocks and they’ve been fine. They are almost seven years old. Still drives and rides great.

    Assuming the 2024 shocks are soft like the 2016, any recommendations on replacements. I’d like to do a small front lift to level. One of the local shops recommended front and rear replacements for a better overall feel. I am getting quotes right now.

  2. Jul 9, 2024 at 7:03 PM
    #2
    Acesandeights

    Acesandeights #34

    Joined:
    Apr 16, 2024
    Member:
    #39864
    Messages:
    509
    So Oregon
    Vehicle:
    2024 ORP
    265/70/17 BFG AT KO2, chapstick in the cup holder
    I have found the KDSS does a good job on mitigating body roll, nose dive. I wouldn't change it.

  3. Jul 9, 2024 at 7:03 PM
    #3
    Dillusion

    Dillusion Resident A**h***

    Joined:
    Dec 10, 2018
    Member:
    #7998
    Messages:
    2,822
    Gender:
    Male
    First Name:
    Kyle
    Island in the Middle of the Ocean
    Vehicle:
    2018 TRD OR
    Its the same

  4. Jul 9, 2024 at 7:30 PM
    #4
    TejasRunner

    TejasRunner [OP] New Member

    Joined:
    Aug 27, 2016
    Member:
    #2561
    Messages:
    83
    Gender:
    Male
    Neither of my 4Runners have KDSS. I should have mentioned that. Sorry.

    NV4Runner likes this.
  5. Jul 10, 2024 at 4:57 AM
    #5
    BobbyB

    BobbyB Where the road ends, Fun begins!

    Joined:
    Nov 18, 2020
    Member:
    #17959
    Messages:
    297
    Gender:
    Male
    First Name:
    Bob
    Marietta, GA
    Vehicle:
    2021 White TRD Off Road
    SSO Slimline Bumper Warn Evo 10s winch Bilstein 5100 shocks Dobinson Springs (front and rear) JBA Upper Control Arms Baja Designs Squadron Pro Combo lights Diode Dynamics SS3 Pro Foglights RCI skids (engine, trans, Txfr and gas tank) CaliRaised sliders UpTop Overland Bravo Rack Auxbeam 6 switch panel Frac Harness with front camera Custom rear diff breather on firewall
    The most cost effective way to deal with the nosedive is to replace the shocks. I have a 2021 OR and replaced the OEM shocks with Bilstein 5100’s with the front adjustable shocks set to the .85 lift setting. This firmed up the nosedive and leveled the front.

    Cheer’s
    Bob

  6. Jul 10, 2024 at 5:24 AM
    #6
    Shanky

    Shanky New Member

    Joined:
    Mar 19, 2023
    Member:
    #31847
    Messages:
    115
    What do I have to do to get the nose dive? I’m stock, and it has not happened.

    Shredder likes this.
  7. Jul 10, 2024 at 5:31 AM
    #7
    Trail Runnah

    Trail Runnah New Member

    Joined:
    May 8, 2020
    Member:
    #14189
    Messages:
    2,823
    Gender:
    Male
    Vehicle:
    2013 T4R Trail Edition
    Stock
    2016 & 2024 are the same vehicle. It should handle exactly how your 2016 did.

    icebear and TejasRunner[OP] like this.
  8. Jul 10, 2024 at 5:33 AM
    #8
    Trail Runnah

    Trail Runnah New Member

    Joined:
    May 8, 2020
    Member:
    #14189
    Messages:
    2,823
    Gender:
    Male
    Vehicle:
    2013 T4R Trail Edition
    Stock
    I dunno. I have 176k on the original 2013 suspension and I'm not bothered by any nosedive. Could be because I don't expect sporty handling from a heavy SUV.

  9. Jul 10, 2024 at 5:55 AM
    #9
    1SilverRunner

    1SilverRunner My boy, blue

    Joined:
    Jan 15, 2024
    Member:
    #37925
    Messages:
    1,055
    Gender:
    Male
    Tejas
    Vehicle:
    22 TRD Off Road Premium
    Front Bumper: C4 Fabrication Low-Profile Bumper Warn Evo10-S Winch w/ Warn wireless adapter Extreme LED dual color light bar w/ Cali raised LED OEM style switch Bumper Cover Trimmed For Clearance Rear Bumper: 80% Off Road Rear Bash Bar Armor: RCI Skid plate package C4 Gas tank skid RCI Rear diff skid RCI Shock Skids RSG Angled/ Plated Sliders Total Chaos Cam Tab Gussets Total Chaos Spindle Gussets Suspension: Dobinsons IMS long travel kit (Front: IMS59-50574 w/ C59-352 Springs) (Rear: IMS59-50575 w/ C59-675v Springs) Apache Off Road UCAs Apache Off Road HD Rear Links (Upper and Lower) Apache Off Road Rear Sway Bar Links Dobinsons Track Bar Front Sway Bar Removed DuroBumps Rear Bump stops PerryParts Front Bump stops DRKDSS Track Bar Correction kit Dobinsons Diff Drop Wheels/ Tires: RRW 17x8.5 -12 RR6-H Wheels 285/75/17 Falken A/T4W 1.25" SpiderTrax Spacers BMC, Pinch Weld Folded. MinWin End Caps Storage Solutions: LFD Cross-Bars Aiden James Customs Gear Plate w/ Slide Out Tables *Backordered, coming soon Rado Designs Molle storage panels and top shelf Glove Box organizer Center Console organizer Performance: Scan Gauge II for Temp Monitoring Yota Shop Diff Breather Interior: Diode Dynamics LED Interior lighting (Warm white ftw) Meso Customs Hatch lights Meso Customs Door Handle Covers Ram ball mount for Garmin In-Touch Mini II FitCamX Dash Camera Scosche phone mount Weathertech floor matts Misc: Nano Ceramic Tint (Including windshield and sunroof) Midland MXT575 and Ghost Antenna Cali Raised 27W Ditch Lights OVS Nomadic 6.5' Awning AVS Low Profile Vent Visor AVS Bugflector II Diode Dynamic puddle lights LasFit Reverse lights LED license plate lights Ark Splash Guards Ark Mud Flap Deletes AJT Push-To-Start Button +Midland handheld GMRS radios, Baofeng UV-5R Ham radio, recovery gear, water purification system, lifeboat food rations, trauma kit, fire extinguisher and fire starting kit stay on board.
    I can't stand the stock suspension on these things. Too soft allowing for a lot of body roll and nose dive under braking.

    OP I'd just throw on some bilstein 5100's if you're looking for a budget friendly solution.
    This should fix the brake dive issue and also allow some height adjustability.

  10. Jul 10, 2024 at 6:12 AM
    #10
    glwood54

    glwood54 Stop making me buy stuff!

    Joined:
    Aug 19, 2019
    Member:
    #10964
    Messages:
    6,071
    Gender:
    Male
    First Name:
    Gary
    Albuquerque, NM
    Vehicle:
    2019 OR, KDSS, RSG sliders, Eibach shocks, 265/70 Falken Wildpeaks
    I did the same, but used Eibach shocks, same setting. Very happy with the results. A little over 4 years with this setup.

    nimby, LCJ77 and TejasRunner[OP] like this.
  11. Jul 10, 2024 at 6:18 AM
    #11
    TejasRunner

    TejasRunner [OP] New Member

    Joined:
    Aug 27, 2016
    Member:
    #2561
    Messages:
    83
    Gender:
    Male
    Which 4Runner trim do you have?

  12. Jul 10, 2024 at 6:19 AM
    #12
    TejasRunner

    TejasRunner [OP] New Member

    Joined:
    Aug 27, 2016
    Member:
    #2561
    Messages:
    83
    Gender:
    Male
    Thank you. I’ll be doing something similar.

  13. Jul 10, 2024 at 6:24 AM
    #13
    Shanky

    Shanky New Member

    Joined:
    Mar 19, 2023
    Member:
    #31847
    Messages:
    115
    TRD Offoad

  14. Jul 10, 2024 at 6:50 AM
    #14
    mainerunr

    mainerunr New Member

    Joined:
    Oct 27, 2022
    Member:
    #29286
    Messages:
    354
    Gender:
    Male
    Maine
    Vehicle:
    '23 TRD ORP
    Toyo AT3's, Greenlane Sliders
    drive like an asshat? or maybe just be oversensitive and expect it to drive like a sports car?

    Trail Runnah likes this.
  15. Jul 10, 2024 at 6:50 AM
    #15
    Startrek

    Startrek New Member

    Joined:
    Apr 28, 2021
    Member:
    #21187
    Messages:
    362
    Gender:
    Male
    Vehicle:
    2012
    You have to press hard on acceleration pedal between traffic lights and hit brakes in emergency-like manner. AND you have to have more sugar in your daily consumption so you will be irritated easily by the smallest things. Sugar is your answer.

    Shredder, BC Hunter and Trail Runnah like this.
  16. Jul 10, 2024 at 7:43 AM
    #16
    Shanky

    Shanky New Member

    Joined:
    Mar 19, 2023
    Member:
    #31847
    Messages:
    115
    That’s hard to do while keeping the green Eco light lit all the time…….


    Actually we have technology to avoid nose dives, roll overs etc. For street use only. We have a bobblehead Pug from MIB that has sat on our dashboards since the kids got it in a happy meal in the 1990’s. If he slides, it means mellow out. If he tips over, switch drivers. If he flys off the dash entirely, check for injury’s and call your insurance co. A nose dive would definitely be a “violation”.

    This process got us through three teenage drivers back in the day.

    Last edited: Jul 10, 2024
    Spare Parts and Acesandeights like this.
  17. Jul 10, 2024 at 8:35 AM
    #17
    backpacker

    backpacker New Member

    Joined:
    Apr 22, 2023
    Member:
    #32515
    Messages:
    1,970
    Gender:
    Male
    Vehicle:
    2023 TRD ORP
    RSG sliders, Falken Wildpeak 265/70R/17 E
    I used to have it, but it went away. I guess the 4R trained me to brake even more gradually than I did already. Besides, I'm not in a hurry to need new pads and rotors.

    Trail Runnah and LCJ77 like this.
  18. Jul 10, 2024 at 10:13 AM
    #18
    1SilverRunner

    1SilverRunner My boy, blue

    Joined:
    Jan 15, 2024
    Member:
    #37925
    Messages:
    1,055
    Gender:
    Male
    Tejas
    Vehicle:
    22 TRD Off Road Premium
    Front Bumper: C4 Fabrication Low-Profile Bumper Warn Evo10-S Winch w/ Warn wireless adapter Extreme LED dual color light bar w/ Cali raised LED OEM style switch Bumper Cover Trimmed For Clearance Rear Bumper: 80% Off Road Rear Bash Bar Armor: RCI Skid plate package C4 Gas tank skid RCI Rear diff skid RCI Shock Skids RSG Angled/ Plated Sliders Total Chaos Cam Tab Gussets Total Chaos Spindle Gussets Suspension: Dobinsons IMS long travel kit (Front: IMS59-50574 w/ C59-352 Springs) (Rear: IMS59-50575 w/ C59-675v Springs) Apache Off Road UCAs Apache Off Road HD Rear Links (Upper and Lower) Apache Off Road Rear Sway Bar Links Dobinsons Track Bar Front Sway Bar Removed DuroBumps Rear Bump stops PerryParts Front Bump stops DRKDSS Track Bar Correction kit Dobinsons Diff Drop Wheels/ Tires: RRW 17x8.5 -12 RR6-H Wheels 285/75/17 Falken A/T4W 1.25" SpiderTrax Spacers BMC, Pinch Weld Folded. MinWin End Caps Storage Solutions: LFD Cross-Bars Aiden James Customs Gear Plate w/ Slide Out Tables *Backordered, coming soon Rado Designs Molle storage panels and top shelf Glove Box organizer Center Console organizer Performance: Scan Gauge II for Temp Monitoring Yota Shop Diff Breather Interior: Diode Dynamics LED Interior lighting (Warm white ftw) Meso Customs Hatch lights Meso Customs Door Handle Covers Ram ball mount for Garmin In-Touch Mini II FitCamX Dash Camera Scosche phone mount Weathertech floor matts Misc: Nano Ceramic Tint (Including windshield and sunroof) Midland MXT575 and Ghost Antenna Cali Raised 27W Ditch Lights OVS Nomadic 6.5' Awning AVS Low Profile Vent Visor AVS Bugflector II Diode Dynamic puddle lights LasFit Reverse lights LED license plate lights Ark Splash Guards Ark Mud Flap Deletes AJT Push-To-Start Button +Midland handheld GMRS radios, Baofeng UV-5R Ham radio, recovery gear, water purification system, lifeboat food rations, trauma kit, fire extinguisher and fire starting kit stay on board.
    Reminds me of initial D.



    The cup of water was used to show the weight transfer of the car. The goal was always to keep the water in the cup, even during the most aggressive driving.

  19. Jul 10, 2024 at 10:43 AM
    #19
    TejasRunner

    TejasRunner [OP] New Member

    Joined:
    Aug 27, 2016
    Member:
    #2561
    Messages:
    83
    Gender:
    Male
    Try driving around the Fort Worth area. Then you’ll get it back.

    Justkelvin likes this.
  20. Jul 10, 2024 at 10:46 AM
    #20
    2021venture

    2021venture New Member

    Joined:
    Jan 15, 2023
    Member:
    #30658
    Messages:
    748
    Gender:
    Male
    First Name:
    Todd
    Vehicle:
    2021 Venture
    Elka 2.5, Apache Offroad UCA, durobumps, RCI full skids, RSG sliders, 10 lb Powertank, Maxtrax, Hi lift jack, Westscott Designs modular roof rack and ladder, ARB rear diff breather relocate, ECGS bushing upgrade, c4 low profile bumper, Baja designs S8 lightbar, warn evo winch, factor 55 ultrahook, 80% off-road rear bumper, 4.56 regear
    Check out tread depot if your in DFW. They are pros specialists on Toyota. They drive 4runners too.

    TejasRunner[OP] likes this.
  21. Jul 10, 2024 at 11:01 AM
    #21
    TejasRunner

    TejasRunner [OP] New Member

    Joined:
    Aug 27, 2016
    Member:
    #2561
    Messages:
    83
    Gender:
    Male
    Oscar is sending me a couple of quotes for full suspension.

  22. Jul 10, 2024 at 11:05 AM
    #22
    2021venture

    2021venture New Member

    Joined:
    Jan 15, 2023
    Member:
    #30658
    Messages:
    748
    Gender:
    Male
    First Name:
    Todd
    Vehicle:
    2021 Venture
    Elka 2.5, Apache Offroad UCA, durobumps, RCI full skids, RSG sliders, 10 lb Powertank, Maxtrax, Hi lift jack, Westscott Designs modular roof rack and ladder, ARB rear diff breather relocate, ECGS bushing upgrade, c4 low profile bumper, Baja designs S8 lightbar, warn evo winch, factor 55 ultrahook, 80% off-road rear bumper, 4.56 regear
    Oscar is the man. Can't say enough good things about them. Consider Dobinson IMS for a mid priced suspension that's a lot of bang for the buck.

    TejasRunner[OP] likes this.
  23. Jul 10, 2024 at 11:11 AM
    #23
    1SilverRunner

    1SilverRunner My boy, blue

    Joined:
    Jan 15, 2024
    Member:
    #37925
    Messages:
    1,055
    Gender:
    Male
    Tejas
    Vehicle:
    22 TRD Off Road Premium
    Front Bumper: C4 Fabrication Low-Profile Bumper Warn Evo10-S Winch w/ Warn wireless adapter Extreme LED dual color light bar w/ Cali raised LED OEM style switch Bumper Cover Trimmed For Clearance Rear Bumper: 80% Off Road Rear Bash Bar Armor: RCI Skid plate package C4 Gas tank skid RCI Rear diff skid RCI Shock Skids RSG Angled/ Plated Sliders Total Chaos Cam Tab Gussets Total Chaos Spindle Gussets Suspension: Dobinsons IMS long travel kit (Front: IMS59-50574 w/ C59-352 Springs) (Rear: IMS59-50575 w/ C59-675v Springs) Apache Off Road UCAs Apache Off Road HD Rear Links (Upper and Lower) Apache Off Road Rear Sway Bar Links Dobinsons Track Bar Front Sway Bar Removed DuroBumps Rear Bump stops PerryParts Front Bump stops DRKDSS Track Bar Correction kit Dobinsons Diff Drop Wheels/ Tires: RRW 17x8.5 -12 RR6-H Wheels 285/75/17 Falken A/T4W 1.25" SpiderTrax Spacers BMC, Pinch Weld Folded. MinWin End Caps Storage Solutions: LFD Cross-Bars Aiden James Customs Gear Plate w/ Slide Out Tables *Backordered, coming soon Rado Designs Molle storage panels and top shelf Glove Box organizer Center Console organizer Performance: Scan Gauge II for Temp Monitoring Yota Shop Diff Breather Interior: Diode Dynamics LED Interior lighting (Warm white ftw) Meso Customs Hatch lights Meso Customs Door Handle Covers Ram ball mount for Garmin In-Touch Mini II FitCamX Dash Camera Scosche phone mount Weathertech floor matts Misc: Nano Ceramic Tint (Including windshield and sunroof) Midland MXT575 and Ghost Antenna Cali Raised 27W Ditch Lights OVS Nomadic 6.5' Awning AVS Low Profile Vent Visor AVS Bugflector II Diode Dynamic puddle lights LasFit Reverse lights LED license plate lights Ark Splash Guards Ark Mud Flap Deletes AJT Push-To-Start Button +Midland handheld GMRS radios, Baofeng UV-5R Ham radio, recovery gear, water purification system, lifeboat food rations, trauma kit, fire extinguisher and fire starting kit stay on board.
    Tread Depot is only shop in DFW I trust.

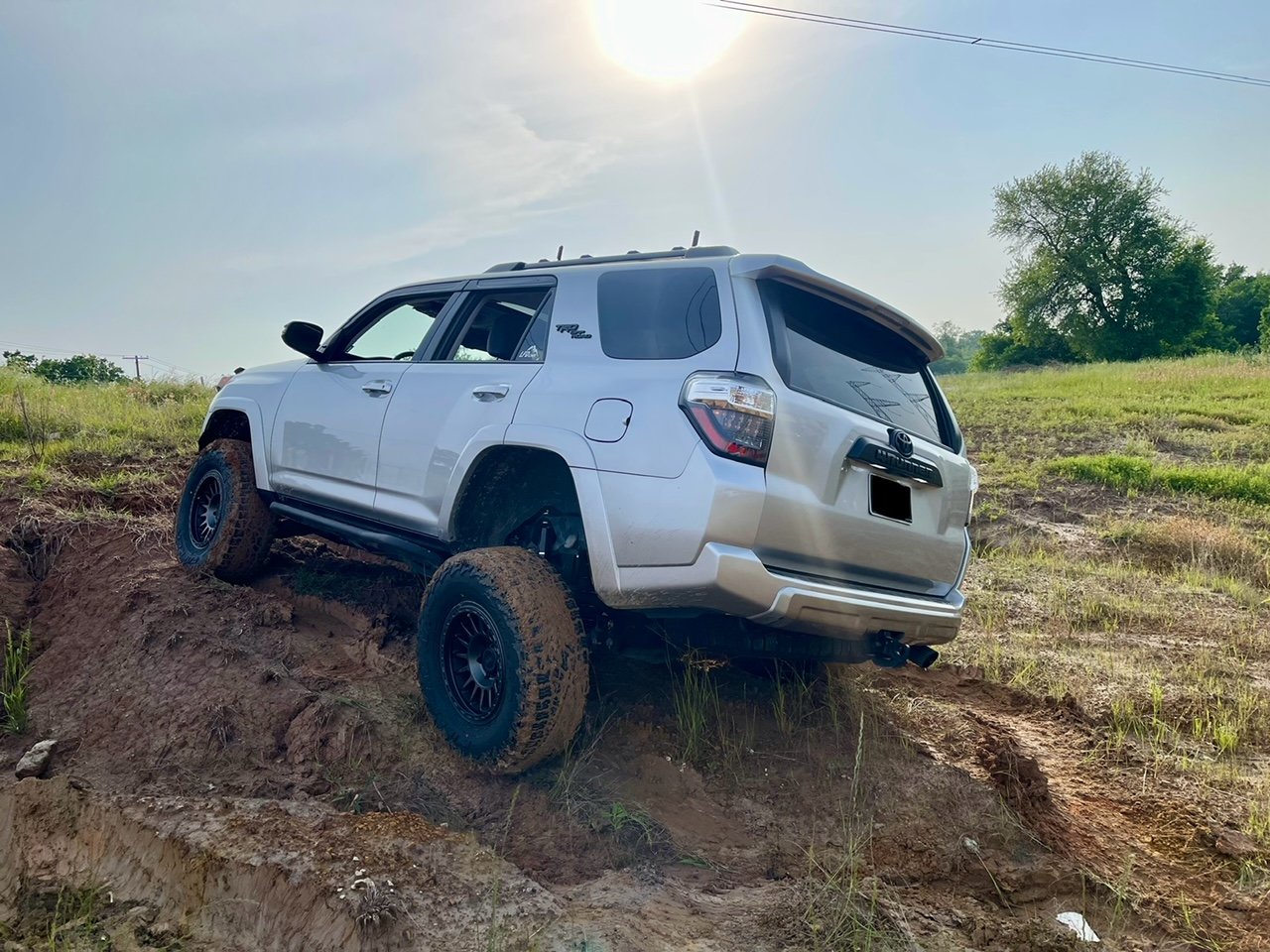

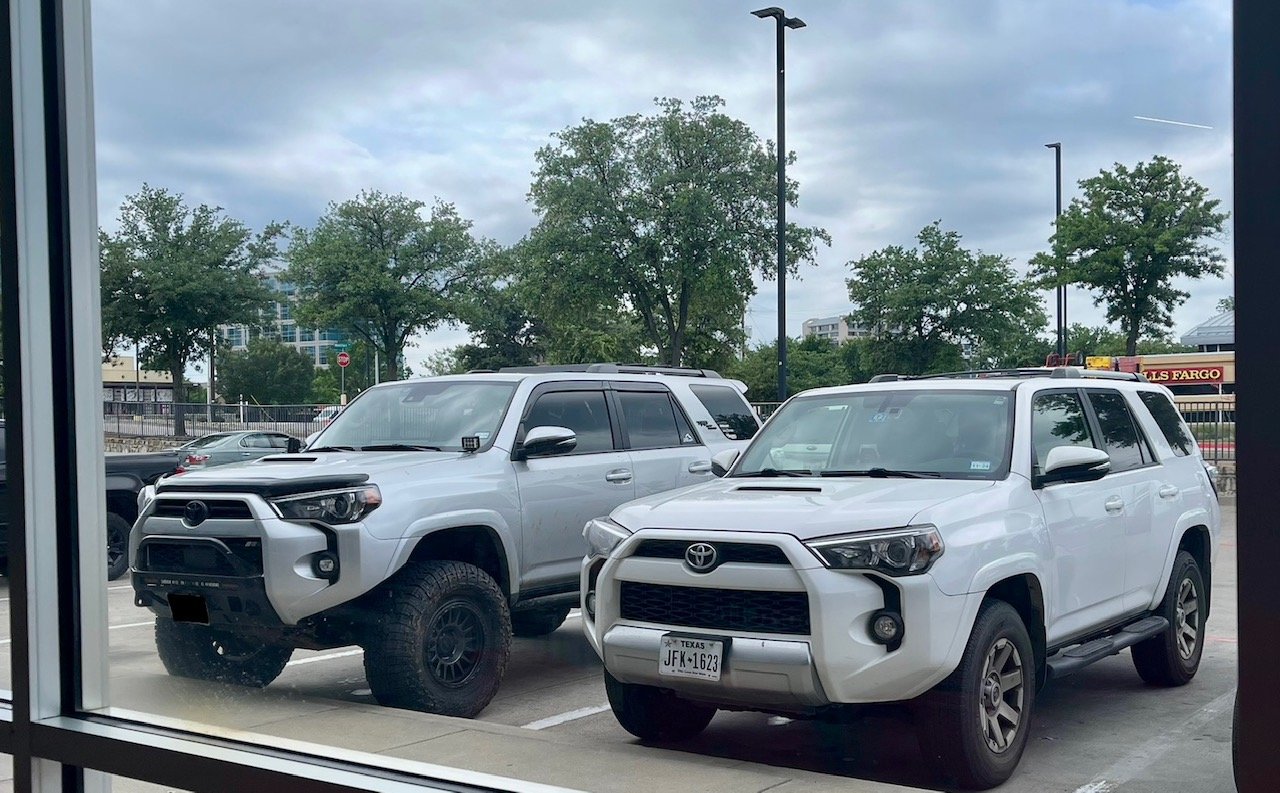

    Oscar, Chayton and Pat are the people to see. They installed my long travel IMS suspension.


    Attached Files:

  24. Jul 10, 2024 at 11:33 AM
    #24
    CalcityRenegade

    CalcityRenegade New Member

    Joined:
    Feb 14, 2023
    Member:
    #31252
    Messages:
    528
    First Name:
    Matt
    Calgary, Alberta, Canada, Earth
    Vehicle:
    2023 T4R ORP KDSS
    Mine has KDSS but still nosedives more than I would like. I will be upgrading the suspension in the near future.

  25. Jul 10, 2024 at 11:36 AM
    #25
    Slopemaster

    Slopemaster Slope Survivalist

    Joined:
    Mar 20, 2021
    Member:
    #20442
    Messages:
    2,985
    Gender:
    Male
    Idaho
    Vehicle:
    2018 SR5
    265-70-17 Ridge Grapplers, TRD Pro rims, 3M precut bra, N-Fab nerf/steps
    I am able to anticipate my stops 99.9% of the time so nosedive is not a concern for me.
    I like the softness of the stock suspension, but I was raised in the 60/70’s when ride comfort was a thing.

    5thToy likes this.
  26. Jul 10, 2024 at 11:40 AM
    #26
    Jedi5150

    Jedi5150 New Member

    Joined:
    Dec 3, 2022
    Member:
    #29906
    Messages:
    385
    Gender:
    Male
    PNW
    Vehicle:
    2022 4Runner ORP
    Drive a Tacoma. Then, when you get back in your 4Runner you’ll think you’re faceplanting from the nose dive. :rofl:

    At least that was my experience. The first time I hopped in my 2022 4Runner after coming from two Tacos in a row, I was shocked by the nose dive. Then after that first drive I promptly forgot about it and have never noticed it since. (Although in fairness, I went with such heavy springs on my OME lift I don’t think you could push the nose of this thing down with an M1 Abrams sitting on it….)

    CalcityRenegade likes this.
  27. Jul 10, 2024 at 11:45 AM
    #27
    Garlic

    Garlic New Member

    Joined:
    Mar 30, 2024
    Member:
    #39483
    Messages:
    74
    CO
    Vehicle:
    2024 TRD Off Road
    I’m with you, I’d like a softer suspension if anything.

  28. Jul 10, 2024 at 11:46 AM
    #28
    nimby

    nimby in the drink

    Joined:
    Mar 27, 2017
    Member:
    #3777
    Messages:
    4,530
    First Name:
    Jake
    California
    Vehicle:
    2018 SR5P
    If you want to save some money, just put Eibach or Bilstein front shocks on (with your stock coils). Lift if you want (or don't). The rear shocks and coils can remain stock.

    Eibachs ride better than Bilsteins IMO.

    5thToy likes this.
  29. Jul 10, 2024 at 11:56 AM
    #29
    TejasRunner

    TejasRunner [OP] New Member

    Joined:
    Aug 27, 2016
    Member:
    #2561
    Messages:
    83
    Gender:
    Male
    That will be one of the quotes. Apache will be the other. They did the brakes on my 2016 this past winter.

  30. Jul 10, 2024 at 11:57 AM
    #30
    2021venture

    2021venture New Member

    Joined:
    Jan 15, 2023
    Member:
    #30658
    Messages:
    748
    Gender:
    Male
    First Name:
    Todd
    Vehicle:
    2021 Venture
    Elka 2.5, Apache Offroad UCA, durobumps, RCI full skids, RSG sliders, 10 lb Powertank, Maxtrax, Hi lift jack, Westscott Designs modular roof rack and ladder, ARB rear diff breather relocate, ECGS bushing upgrade, c4 low profile bumper, Baja designs S8 lightbar, warn evo winch, factor 55 ultrahook, 80% off-road rear bumper, 4.56 regear
    I have the Apache UCA and they are beefy.

    TejasRunner[OP] likes this.
