2018 4R - Trick/Tip for removing gas pedal harness ?

Discussion in '5th Gen 4Runners (2010+)' started by 4Oregon, May 30, 2021.

  1. May 30, 2021 at 7:55 PM
    #1
    4Oregon

    4Oregon [OP] New Member

    Joined:
    Feb 23, 2021
    Member:
    #19944
    Messages:
    27
    Gender:
    Male
    First Name:
    Gary
    Vehicle:
    TRD Off Road Premium
    I was tired from all the work but I packed along some extra patience and tried to install a Sprint Booster this evening in a 2018 TRD Premium. All the videos basically say "simply remove the wire harness from the gas pedal." "Simply" being the operative word. On this 2018 if there's a release lever, it's hidden on the back side of the plug where you cannot see it.

    I'll got at it again in the morning. Perhaps mini vise grips will serve as a third hand. Until then, any advice on how to remove this harness plug?

  2. May 30, 2021 at 8:18 PM
    #2
    GrayGhost

    GrayGhost New Member

    Joined:
    Apr 11, 2021
    Member:
    #20888
    Messages:
    154
    Gender:
    Male
    First Name:
    Dave
    Vehicle:
    2020 orp - sold

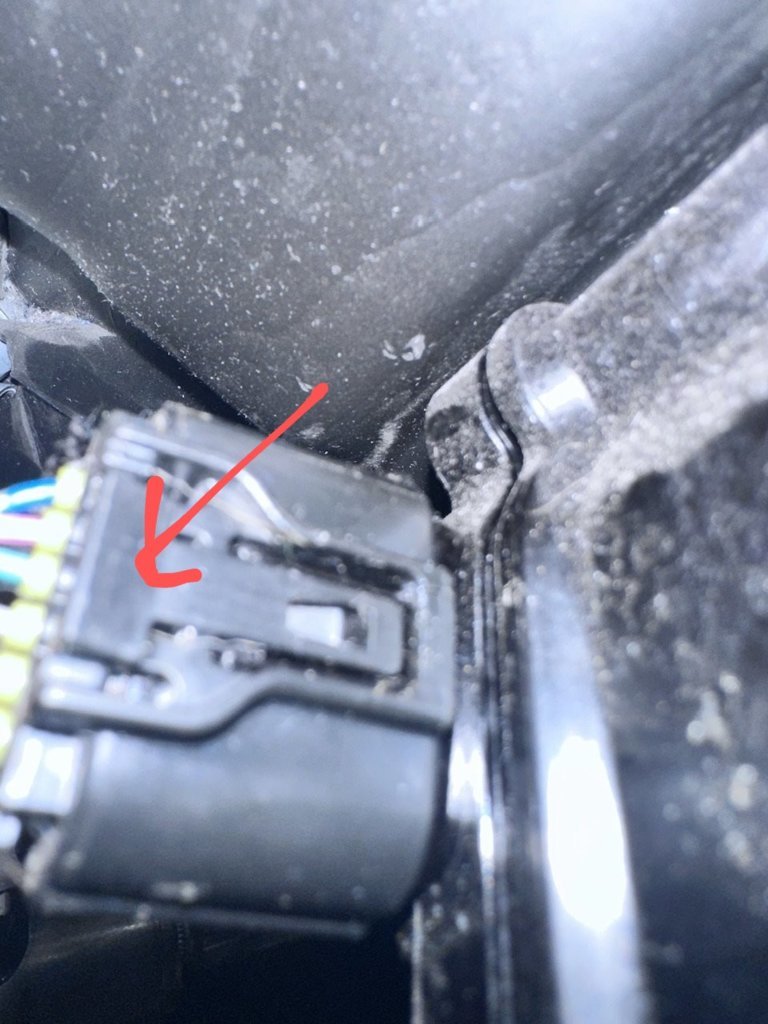

    Just release the tab and it comes off in seconds

    Last edited: May 30, 2021
    Snickel Fritz likes this.
  3. May 30, 2021 at 8:22 PM
    #3
    Old Red

    Old Red New Member

    Joined:
    Feb 21, 2019
    Member:
    #8901
    Messages:
    62
    Gender:
    Male
    Washington
    Vehicle:
    2016 4Runner SR5 4x4 MGM & 1994 Pickup 4WD Garnett Pearl
    It's a long list...
    @GrayGhost is correct, press down on the tab. It also helps to work the connector left to right as you pull it of the accelerator pedal assembly. Whatever you do, don't use vice grips. You might damage a wire or the connector.

  4. Jun 2, 2021 at 4:19 PM
    #4
    4Oregon

    4Oregon [OP] New Member

    Joined:
    Feb 23, 2021
    Member:
    #19944
    Messages:
    27
    Gender:
    Male
    First Name:
    Gary
    Vehicle:
    TRD Off Road Premium
    Unfortunately, it's 2-nil in favor of the pedal harness. If only the release was on the outer side so you could see it.
    I've tried sticky gloves for grip and little flat tools to try to depress the tab.
    I'm about two hours into this and am tempted to remove the gas pedal - it appears there's a single 10mm nut/bolt on each side of the pedal bracket holding it to the firewall, but requires a deep well socket.

    Round 3 and GOALLLL!

    The combination of threatening the pedal with disassembly and a dentist's mirror so I could clearly see the back of the connector and exactly where to depress finally enabled me to remove the connector and install the Sprint Booster.

    Last edited: Jun 2, 2021
    DRobs and ElectroBoy like this.
  5. Jun 4, 2021 at 4:35 PM
    #5
    MNJimmy

    MNJimmy New Member

    Joined:
    May 4, 2021
    Member:
    #21285
    Messages:
    5
    Gender:
    Male
    First Name:
    Jim
    Vehicle:
    2021 Limited Nightshade
    I had the same frustration with installing mine. Just couldn’t seem to get my finger on the tab, but finally got it.

  6. Jun 4, 2021 at 9:15 PM
    #6
    4Oregon

    4Oregon [OP] New Member

    Joined:
    Feb 23, 2021
    Member:
    #19944
    Messages:
    27
    Gender:
    Male
    First Name:
    Gary
    Vehicle:
    TRD Off Road Premium
    I got to test drive the Sprint Booster for the first time today and it was well worth the struggle to install it.
    It was fun to comparison test it in "OFF" mode, then switch to "SPORT 5" and finally to "RACE 7"
    Big, big difference in responsiveness.

  7. Jun 6, 2021 at 5:20 AM
    #7
    DRobs

    DRobs New Member

    Joined:
    Jan 5, 2019
    Member:
    #8335
    Messages:
    1,070
    Gender:
    Male
    First Name:
    Dan
    Missouri Ozarks
    Vehicle:
    2019 Toyota 4Runner OR - MGM
    Pinstripes, lots of em.
    Same here. Had to take a couple tries at it.

    I keep mine in Red/Race 6.

  8. Jun 6, 2021 at 9:11 AM
    #8
    Ironguy

    Ironguy New Member

    Joined:
    Dec 22, 2019
    Member:
    #12421
    Messages:
    2,354
    Gender:
    Male
    First Name:
    Ralph
    Bisbee AZ
    Vehicle:
    2020 Black 4Runner Venture 1967 FJ40 Land Cruiser
    New pine scent hanger, new sun shade
    It took me a couple of tries and the stringing of some off color words but I did get it done and am enjoying the response!

    DRobs likes this.
  9. Nov 23, 2021 at 5:17 PM
    #9
    T4Rrunning

    T4Rrunning New Member

    Joined:
    Feb 17, 2021
    Member:
    #19826
    Messages:
    284
    Gender:
    Male
    Socal
    Vehicle:
    '21 LR TRD PRO
    Ceramic Tint, Heftyfab Sliders, Canvasback Liners

    I am having this same issue. Any tips on where to depress? Can’t seem to get it to release.

  10. Nov 23, 2021 at 5:18 PM
    #10
    T4Rrunning

    T4Rrunning New Member

    Joined:
    Feb 17, 2021
    Member:
    #19826
    Messages:
    284
    Gender:
    Male
    Socal
    Vehicle:
    '21 LR TRD PRO
    Ceramic Tint, Heftyfab Sliders, Canvasback Liners
    tips on getting it to release? Can’t seem to find the right spot.

    Last edited: Nov 23, 2021
  11. Nov 23, 2021 at 5:44 PM
    #11
    08TXRunner

    08TXRunner New Member

    Joined:
    Feb 17, 2020
    Member:
    #13179
    Messages:
    322
    Gender:
    Male
    If you can't figure out how to unclip the harness, you should bring it to a shop.

    GrayGhost likes this.
