WC Rear Cantilever Kit for your 4Runner

Discussion in 'General 4Runner Talk' started by Wicked-creations, Jan 17, 2022.

  1. Jan 17, 2022 at 3:55 PM
    #1
    Wicked-creations

    Wicked-creations [OP] Toyota Cantilever Kit

    Joined:
    May 30, 2021
    Member:
    #21711
    Messages:
    28
    Gender:
    Male
    First Name:
    Mike
    Garden Grove, CA
    Vehicle:
    2020 Toyota 4Runner
    Wicked Creations Long Travel Kit, Wicked Creations Roof Rack, Wicked Creations rear cantaliver kit, Race line wheels, ADV fiberglass

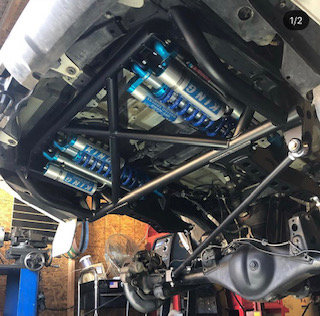

    Here are some pics of a install we just wrapped up of the WC Cantilever kit. 15" of travel with King coilover, bypass, and bumpstops, Billet rear trailing arms, 3 Link Upper, Billet sway bar and more. Let us know what you think, and if your interested.



    Attached Files:

    doublewide, nimby, Toy4X4 and 2 others like this.
  2. Jan 18, 2022 at 11:18 AM
    #2
    McSpazatron

    McSpazatron New Member

    Joined:
    Feb 16, 2021
    Member:
    #19810
    Messages:
    2,514
    Gender:
    Male
    Vehicle:
    2021 4runner OR
    Dobinson IMS Warn Bumper CaliRaised Sliders 265/70 K02s
    But can I fit a 285 spare in the factory location?





    KIDDING!!!! That looks absolutely insane! I’d love to build out a 4runner into one of these. Gonna need a second one though, because Im not sure how it would do as a 50mile daily driver lol

    DRobs, Thatbassguy and LandCruiser like this.
  3. Jan 19, 2022 at 5:20 AM
    #3
    DRobs

    DRobs New Member

    Joined:
    Jan 5, 2019
    Member:
    #8335
    Messages:
    1,305
    Gender:
    Male
    First Name:
    Dan
    Missouri Ozarks
    Vehicle:
    2019 TRD OR - MGM
    Pinstripes, lots of em. Plus a couple dents.
    Can you make the 1st picture larger?

    I'm not even sure what I'm looking at there...
    Looks like something off a Jeep.

    What are the shocks (4?) attached too? I think I need like flow chart to understand how that works.

    What does that run?

    Thatbassguy likes this.
  4. Jan 19, 2022 at 9:20 AM
    #4
    Wicked-creations

    Wicked-creations [OP] Toyota Cantilever Kit

    Joined:
    May 30, 2021
    Member:
    #21711
    Messages:
    28
    Gender:
    Male
    First Name:
    Mike
    Garden Grove, CA
    Vehicle:
    2020 Toyota 4Runner
    Wicked Creations Long Travel Kit, Wicked Creations Roof Rack, Wicked Creations rear cantaliver kit, Race line wheels, ADV fiberglass
  5. Jan 19, 2022 at 9:50 AM
    #5
    McSpazatron

    McSpazatron New Member

    Joined:
    Feb 16, 2021
    Member:
    #19810
    Messages:
    2,514
    Gender:
    Male
    Vehicle:
    2021 4runner OR
    Dobinson IMS Warn Bumper CaliRaised Sliders 265/70 K02s
    My God, it’s full of stars…

    beautiful work. Those shocks are actuated by arms, right?

    LandCruiser, DRobs and Thatbassguy like this.
  6. Jan 19, 2022 at 11:53 AM
    #6
    Wicked-creations

    Wicked-creations [OP] Toyota Cantilever Kit

    Joined:
    May 30, 2021
    Member:
    #21711
    Messages:
    28
    Gender:
    Male
    First Name:
    Mike
    Garden Grove, CA
    Vehicle:
    2020 Toyota 4Runner
    Wicked Creations Long Travel Kit, Wicked Creations Roof Rack, Wicked Creations rear cantaliver kit, Race line wheels, ADV fiberglass
    Yes, the shocks are connected to a rocker that's connected to the rear housing

    McSpazatron, LandCruiser and DRobs like this.
  7. Jan 19, 2022 at 3:13 PM
    #7
    DRobs

    DRobs New Member

    Joined:
    Jan 5, 2019
    Member:
    #8335
    Messages:
    1,305
    Gender:
    Male
    First Name:
    Dan
    Missouri Ozarks
    Vehicle:
    2019 TRD OR - MGM
    Pinstripes, lots of em. Plus a couple dents.
    Can you post a pic of it at full droop?

  8. Jan 19, 2022 at 3:19 PM
    #8
    DRobs

    DRobs New Member

    Joined:
    Jan 5, 2019
    Member:
    #8335
    Messages:
    1,305
    Gender:
    Male
    First Name:
    Dan
    Missouri Ozarks
    Vehicle:
    2019 TRD OR - MGM
    Pinstripes, lots of em. Plus a couple dents.
    Are these rear sway bar links meant to be taken off or am I miss reading how this works?

    WC jeep rear 4Runner.jpg

  9. Jan 19, 2022 at 3:21 PM
    #9
    Jynarik

    Jynarik I like boobies

    Joined:
    Jul 10, 2019
    Member:
    #10510
    Messages:
    1,974
    Gender:
    Male
    Austin Texas
    Vehicle:
    2019 trd pro voodoo
    Hell yes

  10. Jan 19, 2022 at 4:13 PM
    #10
    Wicked-creations

    Wicked-creations [OP] Toyota Cantilever Kit

    Joined:
    May 30, 2021
    Member:
    #21711
    Messages:
    28
    Gender:
    Male
    First Name:
    Mike
    Garden Grove, CA
    Vehicle:
    2020 Toyota 4Runner
    Wicked Creations Long Travel Kit, Wicked Creations Roof Rack, Wicked Creations rear cantaliver kit, Race line wheels, ADV fiberglass
    Drobs,
    Those are the rocker links, so basically that is what connects the axle to the rocker. The rocker is what the shocks mount to.

    DRobs and McSpazatron like this.
  11. Jan 19, 2022 at 7:45 PM
    #11
    McSpazatron

    McSpazatron New Member

    Joined:
    Feb 16, 2021
    Member:
    #19810
    Messages:
    2,514
    Gender:
    Male
    Vehicle:
    2021 4runner OR
    Dobinson IMS Warn Bumper CaliRaised Sliders 265/70 K02s
    @Wicked-creations you post pics like somebody who is teasing our curiosity…

    Ok ok, you post like somebody who is actually busy with doing and making real things and aint got time for silly pictures lol. :laugh:

    When you take a breather from the shop, I would be much obliged to be able to see more pics all the way around. I love seeing design/fab work like this.

  12. Jan 19, 2022 at 8:38 PM
    #12
    PVT Pablo

    PVT Pablo

    Joined:
    Mar 10, 2016
    Member:
    #1694
    Messages:
    1,780
    First Name:
    Paul
    Kitsap County, WA
    Vehicle:
    2016 4Runner TRD Pro
    Curious as to rough price of parts and fab work total

  13. Jan 20, 2022 at 7:12 AM
    #13
    nimby

    nimby in the drink

    Joined:
    Mar 27, 2017
    Member:
    #3777
    Messages:
    3,753
    First Name:
    Jake
    California
    Vehicle:
    2018 SR5P
    For those trying to visualize how a cantilever set-up works.

    KilluFirst, DRobs and McSpazatron like this.
  14. Jan 20, 2022 at 7:41 AM
    #14
    BionicRandy

    BionicRandy New Member

    Joined:
    Dec 4, 2021
    Member:
    #24510
    Messages:
    834
    Gender:
    Male
    First Name:
    Randy
    TX Hill Country
    Vehicle:
    2012 Black SR5 aka the Batmobile
    Lots of goodies
    Beautiful craftsmanship! How is the articulation? If you back it up a ramp will you get the full range of travel on both sides?

  15. Jan 20, 2022 at 8:50 AM
    #15
    ElectroBoy

    ElectroBoy Ad astra

    Joined:
    Jul 29, 2020
    Member:
    #15823
    Messages:
    1,633
    Gender:
    Male
    Bay Area, CA
    Vehicle:
    2018 ORP
    Impressive. But can the rear driveshaft accommodate that much articulation?

    LandCruiser likes this.
  16. Jan 20, 2022 at 9:55 AM
    #16
    Wicked-creations

    Wicked-creations [OP] Toyota Cantilever Kit

    Joined:
    May 30, 2021
    Member:
    #21711
    Messages:
    28
    Gender:
    Male
    First Name:
    Mike
    Garden Grove, CA
    Vehicle:
    2020 Toyota 4Runner
    Wicked Creations Long Travel Kit, Wicked Creations Roof Rack, Wicked Creations rear cantaliver kit, Race line wheels, ADV fiberglass
  17. Jan 20, 2022 at 9:56 AM
    #17
    Wicked-creations

    Wicked-creations [OP] Toyota Cantilever Kit

    Joined:
    May 30, 2021
    Member:
    #21711
    Messages:
    28
    Gender:
    Male
    First Name:
    Mike
    Garden Grove, CA
    Vehicle:
    2020 Toyota 4Runner
    Wicked Creations Long Travel Kit, Wicked Creations Roof Rack, Wicked Creations rear cantaliver kit, Race line wheels, ADV fiberglass

    pics are full droop, and articulation. I will find better pics when I get to the shop. All parts and prices can be found at www.wicked-creations.com

    DRobs, McSpazatron and BionicRandy like this.
  18. Jan 20, 2022 at 7:38 PM
    #18
    nimby

    nimby in the drink

    Joined:
    Mar 27, 2017
    Member:
    #3777
    Messages:
    3,753
    First Name:
    Jake
    California
    Vehicle:
    2018 SR5P
    I'm guessing the cantilever set-up on the 4Runners and FJ's doesn't provide enough articulation to warrant driveshaft modification, but @Wicked-creations can answer that better than I.

    When it comes to race trucks, I'm sure they extend the slip yokes to accommodate some big travel numbers.

    LandCruiser and ElectroBoy like this.
  19. Jan 20, 2022 at 8:41 PM
    #19
    LandCruiser

    LandCruiser I have Toyotas

    Joined:
    Apr 15, 2021
    Member:
    #20965
    Messages:
    1,536
    Gender:
    Male
    East Bay Area
    Vehicle:
    5th Gen OG TE
    Doesn’t that defeat the purpose of a cantilever set up versus traditional long travel?

  20. Jan 20, 2022 at 9:09 PM
    #20
    McSpazatron

    McSpazatron New Member

    Joined:
    Feb 16, 2021
    Member:
    #19810
    Messages:
    2,514
    Gender:
    Male
    Vehicle:
    2021 4runner OR
    Dobinson IMS Warn Bumper CaliRaised Sliders 265/70 K02s
    Im no expert, but I would think the cantilever setup would offer packaging and mechanical advantages that LT cant give. Im sure it all depends on the intended purpose though. Like, this is probably not intended for slow rock crawling

    GrantA likes this.
  21. Jan 21, 2022 at 7:58 AM
    #21
    nimby

    nimby in the drink

    Joined:
    Mar 27, 2017
    Member:
    #3777
    Messages:
    3,753
    First Name:
    Jake
    California
    Vehicle:
    2018 SR5P
    The purpose for a cantilever set-up on our trucks is to extend the travel of the rear end without having to drill massive holes into the cab to clear longer shocks. Wicked Creations is getting 15" of travel out of this set-up for our vehicles. I don't believe 15" of travel in the rear is so much that it requires driveshaft mods, but Wicked Creations knows better than me. Hopefully they will comment on this.

    To @ElectroBoy's question, when travel numbers get higher with a long travel set-up (cantilever or a standard build), I believe they use extended slip yokes to have the long travel and the driveshaft play nice together.

    Did I answer your question?

    Last edited: Jan 21, 2022
    ElectroBoy likes this.
  22. Jan 21, 2022 at 9:04 AM
    #22
    LandCruiser

    LandCruiser I have Toyotas

    Joined:
    Apr 15, 2021
    Member:
    #20965
    Messages:
    1,536
    Gender:
    Male
    East Bay Area
    Vehicle:
    5th Gen OG TE
    Probably not with 15 inches.

    That is sweet as hell.

    nimby likes this.
  23. Jan 21, 2022 at 10:25 AM
    #23
    Wicked-creations

    Wicked-creations [OP] Toyota Cantilever Kit

    Joined:
    May 30, 2021
    Member:
    #21711
    Messages:
    28
    Gender:
    Male
    First Name:
    Mike
    Garden Grove, CA
    Vehicle:
    2020 Toyota 4Runner
    Wicked Creations Long Travel Kit, Wicked Creations Roof Rack, Wicked Creations rear cantaliver kit, Race line wheels, ADV fiberglass
    Our kit does not require any driveshaft modifications. The purpose of the cantilever is to get a longer travel and adjustability without having to cut into your cargo area.

    DRobs, nimby and LandCruiser like this.
  24. Jan 21, 2022 at 10:40 AM
    #24
    Wicked-creations

    Wicked-creations [OP] Toyota Cantilever Kit

    Joined:
    May 30, 2021
    Member:
    #21711
    Messages:
    28
    Gender:
    Male
    First Name:
    Mike
    Garden Grove, CA
    Vehicle:
    2020 Toyota 4Runner
    Wicked Creations Long Travel Kit, Wicked Creations Roof Rack, Wicked Creations rear cantaliver kit, Race line wheels, ADV fiberglass
    35528E94-0861-4A9F-9940-4B5DE8A20ED9.jpg 02191479-45C9-48FF-A858-D6E7B5B95E68.jpg

    Also check out our new billet upper arm mounts, gets rid of the long ass weak stock bolt

  25. Jan 23, 2022 at 7:17 AM
    #25
    DRobs

    DRobs New Member

    Joined:
    Jan 5, 2019
    Member:
    #8335
    Messages:
    1,305
    Gender:
    Male
    First Name:
    Dan
    Missouri Ozarks
    Vehicle:
    2019 TRD OR - MGM
    Pinstripes, lots of em. Plus a couple dents.
    nimby likes this.
  26. Oct 30, 2022 at 12:16 PM
    #26
    Stagarm

    Stagarm New Member

    Joined:
    Jul 28, 2022
    Member:
    #27994
    Messages:
    14
    Gender:
    Male
    First Name:
    Trevor
    Vehicle:
    2010 FJ Cruiser
    Can wait for my 3.5 kit to be delivered.
