Skids and transmission temps

Discussion in '5th Gen 4Runners (2010-2024)' started by swangful, Nov 11, 2022.

  1. Nov 11, 2022 at 7:01 PM
    #1
    swangful

    swangful [OP] New Member

    Joined:
    Sep 10, 2022
    Member:
    #28567
    Messages:
    11
    Has anyone had issues with engine or transmission tempts with skids? I know some have airflow whereas many don't. Curious if its even an issue to think of as I've only seen it brought up maybe once?

  2. Nov 11, 2022 at 7:15 PM
    #2
    McSpazatron

    McSpazatron New Member

    Joined:
    Feb 16, 2021
    Member:
    #19810
    Messages:
    4,612
    Gender:
    Male
    Vehicle:
    2021 4runner OR
    Dobinson IMS Warn Bumper CaliRaised Sliders 285/70 K02s
    A question I’ve thought of myself. But most skidplates cover less frontal area than the factory tins do, so airflow changes for skidplates by themselves is probably not a huge deal on most designs. Some have very good coverage though, with little airventing, so I’d wonder on those.


    There was a guy on here that had a full bumper that was pretty sealed tight, and he had skidplates, and he ended up having problems with trans temps. So it’s possible…but that may have been mostly due to the bumper covering up the majority of the radiator.

    Last edited: Nov 11, 2022
  3. Nov 11, 2022 at 7:33 PM
    #3
    kmeeg

    kmeeg LionRunner

    Joined:
    Apr 18, 2018
    Member:
    #5853
    Messages:
    4,621
    Gender:
    Male
    Maybe my RCI full skids + 2 small spot lights effect cooling, mine hit 200F transmission temp when outside is 45F ish. Almost stock weight (other than aluminum skids and hrew sliders), stock tires. Not towing as well.

  4. Nov 11, 2022 at 8:25 PM
    #4
    swangful

    swangful [OP] New Member

    Joined:
    Sep 10, 2022
    Member:
    #28567
    Messages:
    11
    This is certainly my concern. I was about to actually pull the trigger on some skids until I started thinking about temps.

    I am curious with RCIs design if it’s preventing airflow. Their KDSS version has no holes in the front other than the logo itself.

    right now I’m leaning towards RGS but their rear skid is as solid as can be. Maybe I can drill out some vents…

  5. Nov 11, 2022 at 9:44 PM
    #5
    whippersnapper02

    whippersnapper02 New Member

    Joined:
    Feb 27, 2019
    Member:
    #8982
    Messages:
    2,041
    Gender:
    Male
    First Name:
    Christian
    Vehicle:
    2019 4Runner TRD Offroad Premium
    No change with full skids. I'm still adding an AUX cooler and larger pan though.

  6. Nov 12, 2022 at 7:54 AM
    #6
    HarrisNC

    HarrisNC New Member

    Joined:
    May 19, 2021
    Member:
    #21571
    Messages:
    162
    Gender:
    Male
    Vehicle:
    2022 Limited
    My Rival skids have quite a few vent holes. I don’t know if they make a difference. I guess I should check the trans temp sometime.

    RIVAL 4x4 likes this.
  7. Nov 12, 2022 at 8:14 AM
    #7
    glwood54

    glwood54 Stop making me buy stuff!

    Joined:
    Aug 19, 2019
    Member:
    #10964
    Messages:
    5,536
    Gender:
    Male
    First Name:
    Gary
    Albuquerque, NM
    Vehicle:
    2019 OR, KDSS, RSG sliders, Eibach shocks, 265/70 Falken Wildpeaks
    Sounds like an answer looking for a problem. I think we would have heard a lot more about it if it really was a issue IMO.

    Trail Runnah likes this.
  8. Nov 12, 2022 at 8:32 AM
    #8
    MAXIM

    MAXIM New Member

    Joined:
    Jan 6, 2020
    Member:
    #12593
    Messages:
    394
    Gender:
    Male
    Factory "under cover" doesn't offer much of opening other than that mash covered little window. Are you planning to drive across country for hours non-stop? You might be overthinking it.

  9. Nov 12, 2022 at 9:58 AM
    #9
    swangful

    swangful [OP] New Member

    Joined:
    Sep 10, 2022
    Member:
    #28567
    Messages:
    11
    There are definitely some makers that do a good job with the front, rival being one. It is the rear I would question since it basically puts a solid metal shield around the transmission. Atleast yours has some vents though!

    This was my thought as well, the platform has been out for so long and we're only hearing small anecdotes about it here and there.

    I think most manufactures do a good job with the front skid. Some have no ventilation, but many don't have sufficient ventilation IMO. Even if its just two mesh covered windows, theyre huge in comparison to a cutout logo. Like RCI skid for KDSS for example... (non-kdss version has 4 additional vents, which is fantastic)

    [​IMG]

    Honestly, its really the transmission that id be concerned about. The transmission doesnt have a factory skid. Its completely open, but once you add a skid...it becomes very enclosed. So if the front isnt getting adequate airflow, you know for sure the transmission is just going to be baking.

    Funny enough, driving cross country non-stop would give me less concern since airflow is constant. Its when youre idling, crawling slowly, or towing where theres less airflow/more load that I would be concerned of temperature rises.

    ecoterragaia and McSpazatron like this.
  10. Nov 12, 2022 at 10:25 AM
    #10
    glwood54

    glwood54 Stop making me buy stuff!

    Joined:
    Aug 19, 2019
    Member:
    #10964
    Messages:
    5,536
    Gender:
    Male
    First Name:
    Gary
    Albuquerque, NM
    Vehicle:
    2019 OR, KDSS, RSG sliders, Eibach shocks, 265/70 Falken Wildpeaks
    It's also interesting that the RCI website shows their KDSS front skid on a non-KDSS 4R...

  11. Nov 12, 2022 at 10:32 AM
    #11
    swangful

    swangful [OP] New Member

    Joined:
    Sep 10, 2022
    Member:
    #28567
    Messages:
    11
    lol yeah, not sure why. i actually called them to confirm too

  12. Nov 12, 2022 at 11:48 AM
    #12
    kmeeg

    kmeeg LionRunner

    Joined:
    Apr 18, 2018
    Member:
    #5853
    Messages:
    4,621
    Gender:
    Male

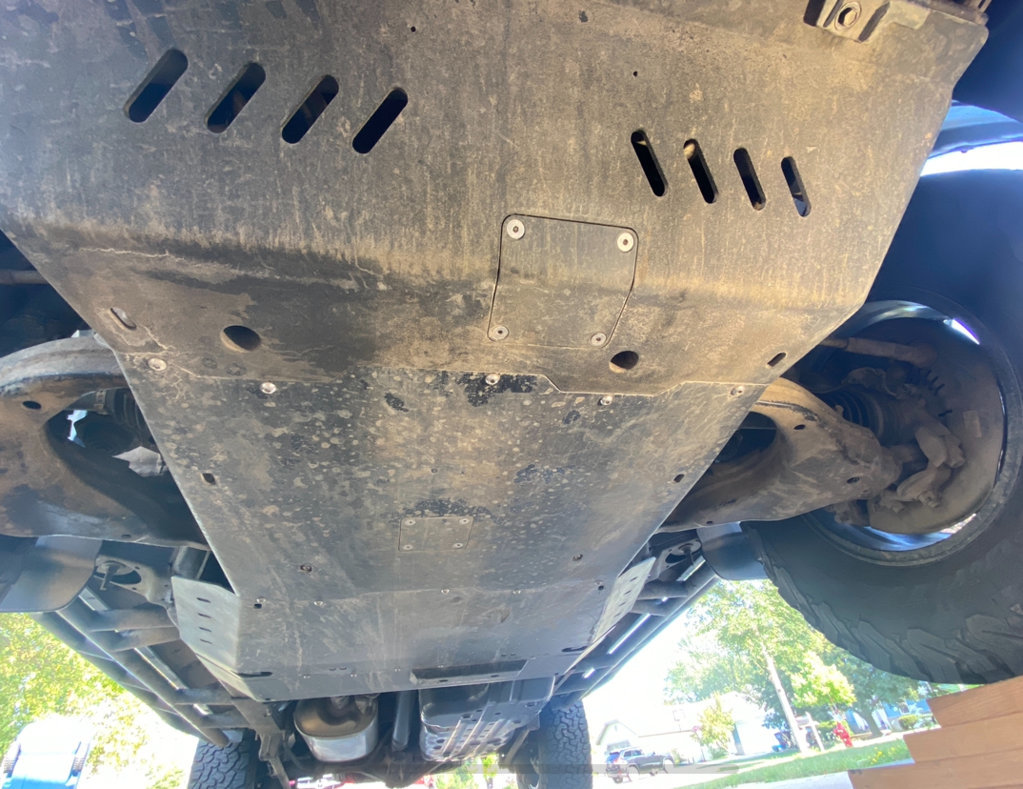

    My Non KDSS RCI for comparison

  13. Nov 12, 2022 at 2:40 PM
    #13
    auspilot

    auspilot Old Member

    Joined:
    Dec 1, 2020
    Member:
    #18236
    Messages:
    139
    Gender:
    Male
    Texas
    Vehicle:
    2020 TRD OR
    Dobs IMS, lots of small stuff

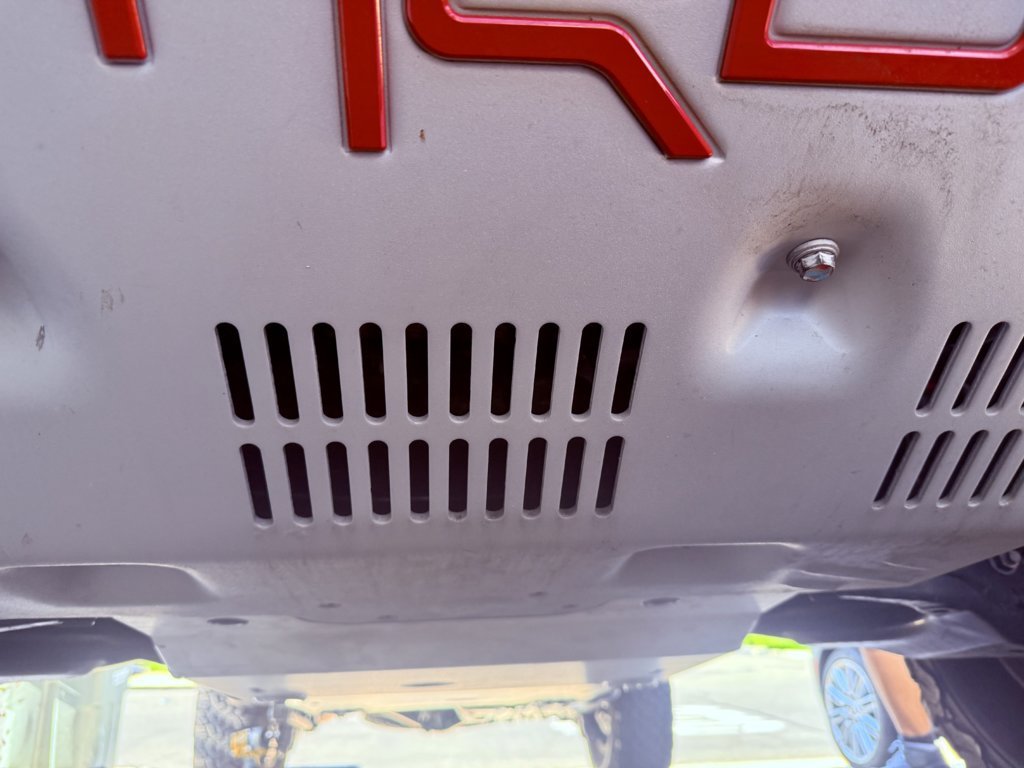

    I've wondered about ventilation on the skids. Both the TRD skid plate and the regular skid plate have vent holes in very specific places. If you look at them from the front you can see they are the in same location on both. They could have put holes anywhere, but there seems to be a reason why the engineers chose those locations. Then @kmeeg posted a pic of the limited with it's duct leading to one of those holes, which reinforced the idea that the designers wanted airflow there. Maybe not a big deal, but it makes me want to stick with one of the Toyota versions...

    McSpazatron and kmeeg like this.
  14. Nov 12, 2022 at 4:10 PM
    #14
    McSpazatron

    McSpazatron New Member

    Joined:
    Feb 16, 2021
    Member:
    #19810
    Messages:
    4,612
    Gender:
    Male
    Vehicle:
    2021 4runner OR
    Dobinson IMS Warn Bumper CaliRaised Sliders 285/70 K02s
    I remember trying to trace out where the air goes from the stock vents. Seem to remember the air is directed to the bottom of the front diff., not sure where else.

  15. Nov 12, 2022 at 5:06 PM
    #15
    Startrek

    Startrek New Member

    Joined:
    Apr 28, 2021
    Member:
    #21187
    Messages:
    311
    Gender:
    Male
    Vehicle:
    2012
    time for auxiliary transmission cooler with electric fan and 180F switch

  16. Nov 12, 2022 at 5:20 PM
    #16
    swangful

    swangful [OP] New Member

    Joined:
    Sep 10, 2022
    Member:
    #28567
    Messages:
    11
    Good find! There definitely seems to be reasoning there. I'm currently leaning towards RSGs plates because of it. An abundance of airflow here. Maybe atleast start with the front first then maybe drill/vent out the rear skid

    [​IMG]

  17. Nov 13, 2022 at 12:04 PM
    #17
    ecoterragaia

    ecoterragaia New Member

    Joined:
    Jul 23, 2021
    Member:
    #22484
    Messages:
    277
    Gender:
    Male
    Central Virginia
    Vehicle:
    2021 SR5 4WD
    Fast forward to 9:45 to see a description of where the engine oil cooler is. I imagine that this is probably the reason for at least one of the vent holes in the skid plate.

    Edit: I realize that it's a water-cooled oil cooler, but those typically come with some sort of ventilation as well, no?

    https://m.youtube.com/watch?v=wDeLFAAJCyk
