Leveling advice?

Discussion in '4th Gen 4Runners (2003-2009)' started by im_zewalrus, Jan 7, 2023.

  1. Jan 7, 2023 at 6:48 PM
    #1
    im_zewalrus

    im_zewalrus [OP] New Member

    Joined:
    Jan 7, 2023
    Member:
    #30490
    Messages:
    2
    Gender:
    Male
    First Name:
    Jackson
    Vehicle:
    '08 Limited V8
    stock... so far
    I'm looking to level my '08 Limited V8 which is otherwise stock. The difference in clearance between the front and back (from top of tire to the top of the wheel well) is about 3" when not loaded up. I am thinking about getting these coilovers and shocks to replace my stock outfit, which according to this video, should level it out pretty well, plus it'd be nice to just replace the shock absorbers in the back to match.

    Both coilovers and shock absorbers are take-offs from a Tacoma and should work, but I'm weary since I've never attempted something like this before.

    Would it be a mistake for any reason to do this? Is there anything I need to consider before pulling the trigger?

    edit: spelling

    This site contains affiliate links for which the site may be compensated.
    #1
  2. Jan 7, 2023 at 8:48 PM
    #2
    ValK83

    ValK83 New Member

    Joined:
    Sep 10, 2022
    Member:
    #28576
    Messages:
    103
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    2018 TRD Off Road
  3. Jan 7, 2023 at 8:51 PM
    #3
    im_zewalrus

    im_zewalrus [OP] New Member

    Joined:
    Jan 7, 2023
    Member:
    #30490
    Messages:
    2
    Gender:
    Male
    First Name:
    Jackson
    Vehicle:
    '08 Limited V8
    stock... so far
  4. Jan 7, 2023 at 8:53 PM
    #4
    ValK83

    ValK83 New Member

    Joined:
    Sep 10, 2022
    Member:
    #28576
    Messages:
    103
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    2018 TRD Off Road
    Ah I missed that my bad. Video looks like it worked. Good luck.

  5. Jan 8, 2023 at 3:39 AM
    #5
    Toy4X4

    Toy4X4 New Member

    Joined:
    Jul 18, 2020
    Member:
    #15580
    Messages:
    6,728
    Gender:
    Male
    First Name:
    Jeff
    Vehicle:
    2020 Offroad Prem. 4-runner
    RevTek 3" front- 2" rear leveling, JBA uca's, LED interior lights, Cooper 275-70-17 AT3 LT
    Welcome from Wisconsin! When you complete the project, post some pics.. thanx.

  6. Jan 8, 2023 at 2:30 PM
    #6
    Steely123

    Steely123 What's the new trend? I'll do it!

    Joined:
    Jun 4, 2022
    Member:
    #27323
    Messages:
    2,549
    Gender:
    Male
    Georgetown, TX
    Vehicle:
    2018 4runner SR5 premium
    Welcome.

  7. Jan 8, 2023 at 3:41 PM
    #7
    Ironguy

    Ironguy New Member

    Joined:
    Dec 22, 2019
    Member:
    #12421
    Messages:
    6,230
    Gender:
    Male
    First Name:
    Ralph
    Bisbee AZ
    Vehicle:
    2020 Black 4Runner Venture 1967 FJ40 Land Cruiser
    New pine scent hanger, new sun shade
    Welcome!

  8. Jan 13, 2023 at 11:46 AM
    #8
    slixx1320

    slixx1320 New Member

    Joined:
    Nov 29, 2021
    Member:
    #24430
    Messages:
    388
    I've not personally done tacoma shocks on a 4th gen but read it's a direct bolt on minus a few very minor mods to the front shock if memory serves me right. I did however put tacoma front on my 2022 5th gen and it's a direct bolt on. It netted me 1.5" of lift over the OEM coilovers that came with the rig. Tacoma take off's on a 4th gen, I believe some have reported getting a 2-3" lift. 4th and 5th gen share similar chassis. The rears will also be a direct bolt on (shocks) but they're not recommended for the 4runner. It's not valved for the weight of a 4runner as a tacoma is lighter in the rears. You'll bounce around like crazy. You could however get the 5th gen 4runner rears (shocks and springs) and use those, then again you may be a little lower in the rear due to the 2-3" you'll get from the taco front.

    Pentangler likes this.
  9. Jan 13, 2023 at 9:42 PM
    #9
    Pentangler

    Pentangler Happy Member

    Joined:
    Jul 23, 2022
    Member:
    #27922
    Messages:
    1,288
    Vehicle:
    2023 ORP
    I'm curious about your 2022 5th Gen with Taco shocks. Were they the off-road Bilstein coil overs with the oem Taco springs? I'm thinking of doing the same to level out my 2022 5th Gen since I have some coil overs from a 2021 Tacoma off-road.

  10. Jan 13, 2023 at 10:00 PM
    #10
    slixx1320

    slixx1320 New Member

    Joined:
    Nov 29, 2021
    Member:
    #24430
    Messages:
    388
    They were the yellow ones off a 2020 or 2021 taco off road 4x4. With the rears stock, it levels it out perfectly. Very similar to the trd pro stance.

  11. Jan 13, 2023 at 10:21 PM
    #11
    Pentangler

    Pentangler Happy Member

    Joined:
    Jul 23, 2022
    Member:
    #27922
    Messages:
    1,288
    Vehicle:
    2023 ORP
    Did you use the Tacoma coils (springs) that were originally on the yellow ones?

  12. Jan 13, 2023 at 11:04 PM
    #12
    slixx1320

    slixx1320 New Member

    Joined:
    Nov 29, 2021
    Member:
    #24430
    Messages:
    388
    Yes, they were direct take offs from the taco. Nothing was changed

  13. Jan 14, 2023 at 5:54 AM
    #13
    Say2x4

    Say2x4 New Member

    Joined:
    Nov 3, 2022
    Member:
    #29403
    Messages:
    6
    Gender:
    Male
    First Name:
    Steve
    Vehicle:
    4th gen 2wd :(
    Front lift with Tacoma struts
    My 06 was nearly dragging the ground in the front, well not quite but you know how they look. Here are stock 4runr and Tacoma (2012 I think) struts. These bolted right up. Think the spacer could have been left off but wasn’t sure how much lift if was going to have. Really about 4” in front but they are 2+” too low to begin with. It’s very stiff now almost like the 84/85 straight axle trucks were. Put rubber spacer above rear spring also but haven’t changed rear shocks yet. Def need UCAs now and probably 285s or similar to fill out wheel wells.




    Attached Files:

    Last edited: Feb 27, 2023
  14. Jan 15, 2023 at 3:59 AM
    #14
    Toy4X4

    Toy4X4 New Member

    Joined:
    Jul 18, 2020
    Member:
    #15580
    Messages:
    6,728
    Gender:
    Male
    First Name:
    Jeff
    Vehicle:
    2020 Offroad Prem. 4-runner
    RevTek 3" front- 2" rear leveling, JBA uca's, LED interior lights, Cooper 275-70-17 AT3 LT

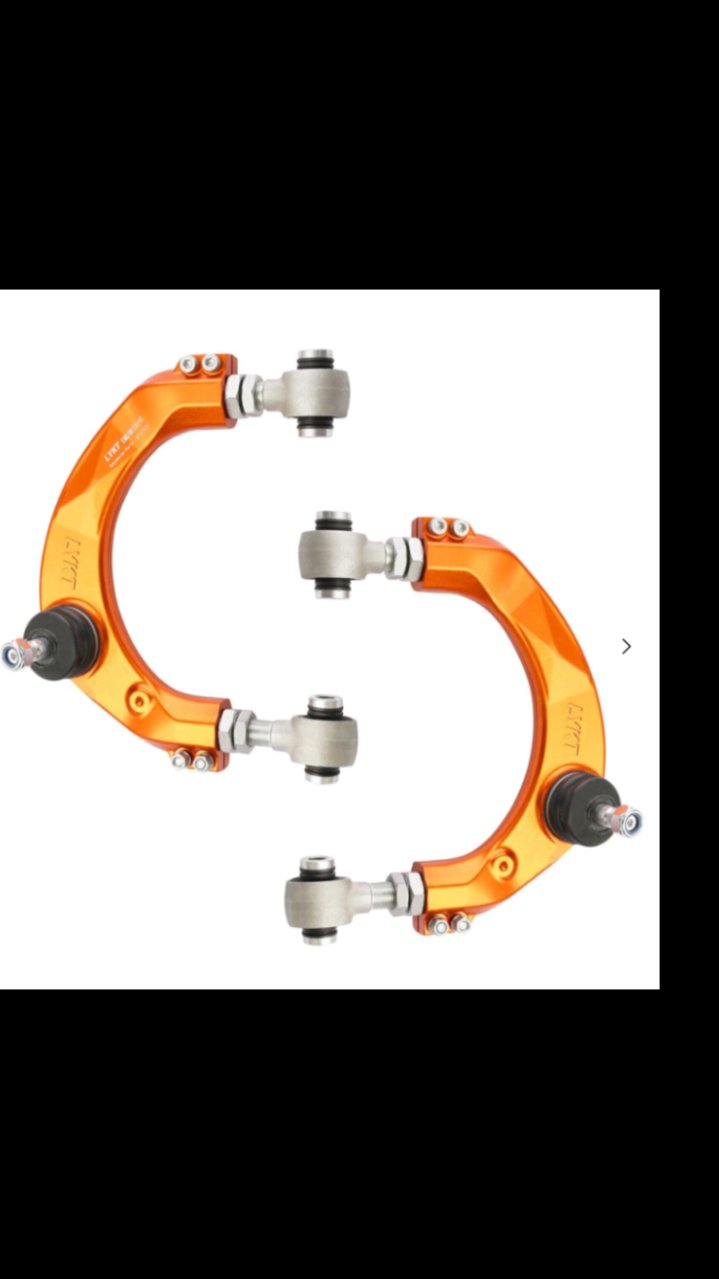

    20201222_095107[702]JBA UCA.jpg Our choice. They provide excellent caster adjustment, are greaseable, designed well, and affordable.

  15. Feb 17, 2023 at 8:30 AM
    #15
    4thgenV808

    4thgenV808 New Member

    Joined:
    Jul 13, 2021
    Member:
    #22323
    Messages:
    14
    Gender:
    Male
    Vehicle:
    2004 V8 4X4 & 2018 Tacoma TRD Pro (Manual)
    The tacoma trd offroad takeoffs are going to sag a tad unless you change the springs due to the additional weight in the V8.

    This site contains affiliate links for which the site may be compensated.
    #15
  16. Mar 11, 2023 at 5:17 AM
    #16
    Libagui

    Libagui New Member

    Joined:
    Jul 15, 2019
    Member:
    #10563
    Messages:
    134
    Gender:
    Male
    First Name:
    Librado
    Vehicle:
    2006 Silver 4runner limited.
    Last edited: Mar 11, 2023
    GreatWhitePig likes this.
  17. Mar 11, 2023 at 8:22 AM
    #17
    xtremewlr

    xtremewlr New Member

    Joined:
    Oct 10, 2020
    Member:
    #17247
    Messages:
    401
    Gender:
    Male
    First Name:
    Todd
    Tucson, AZ
    Vehicle:
    2003 4Runner V8 Limited 4WD
    Lots with more in the works
    This is not entirely correct. Yes the V8 is a little heavier but not by that much. The Tacoma Bilstiens work just fine on the front of the 4th gen 4runner V8. Been there done that.

    Libagui likes this.
