Got the LED light bar wired... Wow!

Discussion in '5th Gen 4Runners (2010-2024)' started by MountainMan, Oct 18, 2020.

  1. Oct 18, 2020 at 6:57 AM
    #1
    MountainMan

    MountainMan [OP] New Member

    Joined:
    Aug 14, 2019
    Member:
    #10898
    Messages:
    795
    Gender:
    Male
    Pacific Northwest
    Vehicle:
    2019 4Runner MountainMan Edition

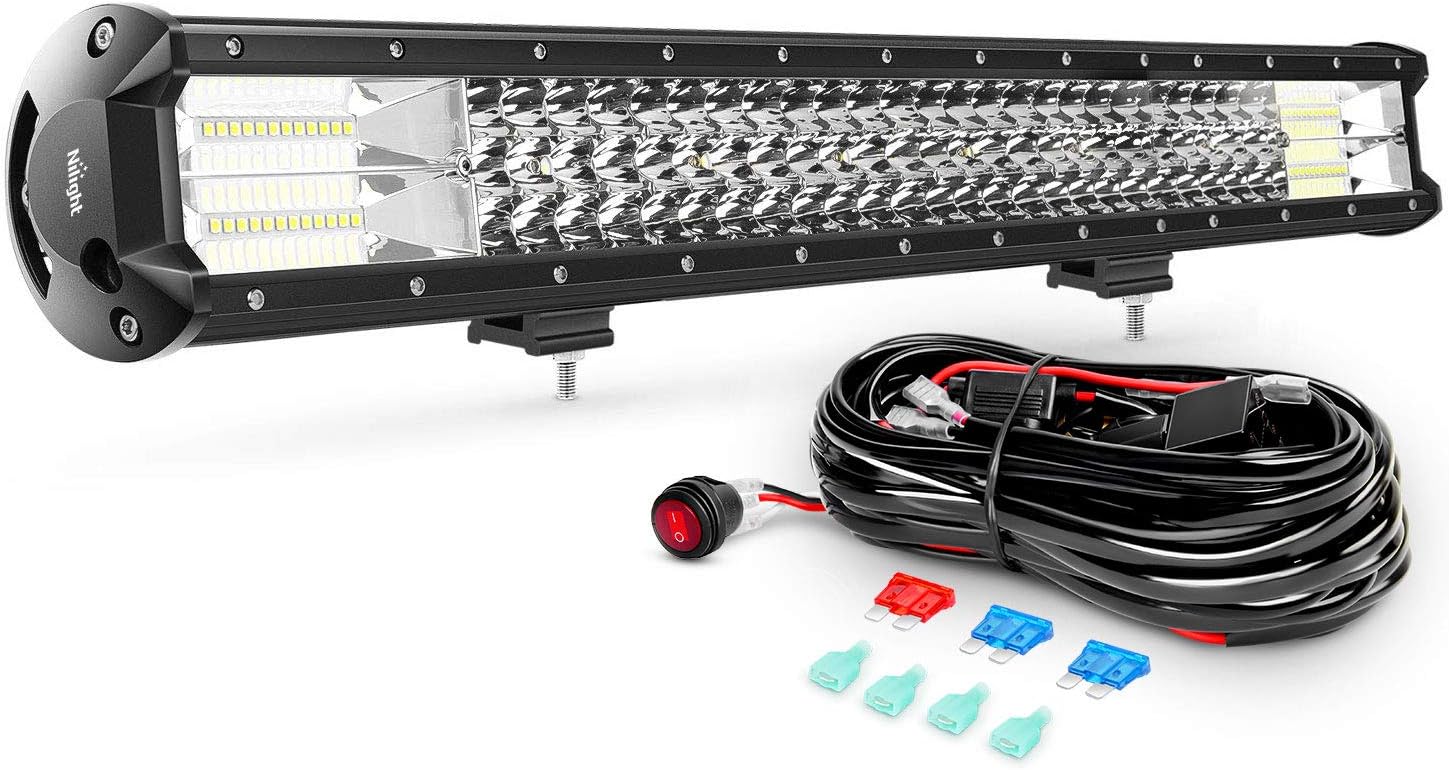

    I bought a 26" 360 watt LED light bar from Amazon a few months ago but hadn't had time to wire it up until yesterday.

    My 14-mile commute to work is through rural farmland with plenty of deer. I go to work at 6 pm and come home at 6 am, and until recently, both drives were in the daylight.

    Now they are both in the dark, and with hunting season starting, the deer are on the move, so I figured I better get the light working.

    Took me about an hour and a half to wire it up using a harness with fuses, relay, and all connections. I bought a switch that matches factory Toyota style and pops into the factory slot. Looks OEM and worked like a charm.

    My previous vehicle had another cheap LED light bar, but it was only a 20" and 120 watt. It was OK, but only marginally better than my high beams.

    I got off work this morning and drove home and when I turned on the light bar... Holy cow does it light up the entire area!

    It's like I'm driving onto an outdoor football field with the lights on. The ditch lights I installed earlier are only 44 watt and do little to help spot the deer. This sucker not only spots them, but they freeze in their tracks and look confused.

    I know it's only a cheap $60 Chinese POS, but it's been on my rig for a few months and shows no sign of wear, corrosion, or fading.

    With just high beams on...


    With the light bar on...


    WTW15, 4runGirl88, alittleoff and 6 others like this.
  2. Oct 18, 2020 at 7:08 AM
    #2
    MountainMan

    MountainMan [OP] New Member

    Joined:
    Aug 14, 2019
    Member:
    #10898
    Messages:
    795
    Gender:
    Male
    Pacific Northwest
    Vehicle:
    2019 4Runner MountainMan Edition
  3. Oct 18, 2020 at 2:31 PM
    #3
    4scooter19

    4scooter19 New Member

    Joined:
    Feb 23, 2019
    Member:
    #8920
    Messages:
    1,334
    Gender:
    Male
    Oregon
    Vehicle:
    98 and 86 4Runners
    I've bought nilight pod lights before and never had any issues. I recommend running a bead of silicon on the seams of the housing. My buddy has nilight bars on his Jeep. His first set got moisture in them. They were warrantied, he silicone'd the second set and they've been holding up fine.

    Last edited: Oct 18, 2020
    Thatbassguy likes this.
  4. Oct 18, 2020 at 2:39 PM
    #4
    Thatbassguy

    Thatbassguy New member? Really??

    Joined:
    Mar 27, 2019
    Member:
    #9314
    Messages:
    13,483
    Gender:
    Male
    First Name:
    James
    S/E Wisconsin
    Vehicle:
    2019 TRDORP, KDSS, MGM
    RSG sliders, Yakima offgrid basket, Pro-Comp wheels, SOS Streamline bumper and skids, Warn VR EVO10S winch + Ultimate Sidewinder, Bilstein 6112 + 5100 + rear lift coils, Rigid Dually SS ditch lights w/Caliraised brackets and OEM style dash switch
    Nilight looks to be one of the better budget friendly lighting options. I don't think I've really heard anything bad about them.

    @MountainMan , how did you mount it?

  5. Oct 18, 2020 at 3:46 PM
    #5
    trlhiker

    trlhiker Lazy Bum

    Joined:
    Nov 8, 2019
    Member:
    #11913
    Messages:
    2,328
    Gender:
    Male
    Vehicle:
    1992 4Runner SR5 V6 4X4
    What a big difference. What did you mount it too?

  6. Oct 18, 2020 at 3:59 PM
    #6
    Oldtoyotaguy

    Oldtoyotaguy Paid cash for it

    Joined:
    Sep 21, 2018
    Member:
    #7224
    Messages:
    1,600
    Gender:
    Male
    Vehicle:
    2018 Toyota 4 Runner Offroad
    In my part of the world, I don’t think it’s legal to run with a light bar on, on a legal road. I’m sure it would be no problem in a rural area though. I remember commuting home to Canada from Grand Marais, Minnesota in the fall and especially the spring and the deer there were lethal after dark.

    Thatbassguy likes this.
  7. Oct 18, 2020 at 4:37 PM
    #7
    Thatbassguy

    Thatbassguy New member? Really??

    Joined:
    Mar 27, 2019
    Member:
    #9314
    Messages:
    13,483
    Gender:
    Male
    First Name:
    James
    S/E Wisconsin
    Vehicle:
    2019 TRDORP, KDSS, MGM
    RSG sliders, Yakima offgrid basket, Pro-Comp wheels, SOS Streamline bumper and skids, Warn VR EVO10S winch + Ultimate Sidewinder, Bilstein 6112 + 5100 + rear lift coils, Rigid Dually SS ditch lights w/Caliraised brackets and OEM style dash switch

    I believe it's illegal here as well. There may be some exceptions, though, where they can be used as auxiliary high beams.

    I used my bumper bar in a rural area recently and just shut it off when there were oncoming cars like you would with brights. I wouldn't think about it in the city, though.

    Oldtoyotaguy[QUOTED] likes this.
  8. Oct 19, 2020 at 12:32 AM
    #8
    mousemeat

    mousemeat New Member

    Joined:
    Oct 8, 2020
    Member:
    #17209
    Messages:
    1,183
    Gender:
    Male
    Memphis, TN.
    Vehicle:
    1997 4 runner limited
    upgraded suspension, large all terrain tires
    with the light on, like night and day...(lol) looks like it was money well spent..looks good...

    4runGirl88 likes this.
  9. Oct 19, 2020 at 10:16 AM
    #9
    MountainMan

    MountainMan [OP] New Member

    Joined:
    Aug 14, 2019
    Member:
    #10898
    Messages:
    795
    Gender:
    Male
    Pacific Northwest
    Vehicle:
    2019 4Runner MountainMan Edition
    I have a brush guard up front that had pre-drilled holes that worked...


  10. Oct 19, 2020 at 11:54 AM
    #10
    Tylandus

    Tylandus New Member

    Joined:
    Sep 1, 2017
    Member:
    #4687
    Messages:
    92
    Gender:
    Male
    First Name:
    Ryan
    Vehicle:
    Former Taco owner. 2019 4Runner SR5 Premium/3rd row.
    Sorry to change topic, but what rack do you have up there and where did you find it?

    Thatbassguy likes this.
  11. Oct 19, 2020 at 12:53 PM
    #11
    MountainMan

    MountainMan [OP] New Member

    Joined:
    Aug 14, 2019
    Member:
    #10898
    Messages:
    795
    Gender:
    Male
    Pacific Northwest
    Vehicle:
    2019 4Runner MountainMan Edition
    It's a GoRhino! I found on Amazon. It's OK. Took three times for them to send me one that was usable due to shipping damage. It also affected my gas mileage by at least 1 mpg and there is a lot of wind noise. Might take it off since I don't use it nearly as much as I thought I would.

  12. Oct 19, 2020 at 12:56 PM
    #12
    Tylandus

    Tylandus New Member

    Joined:
    Sep 1, 2017
    Member:
    #4687
    Messages:
    92
    Gender:
    Male
    First Name:
    Ryan
    Vehicle:
    Former Taco owner. 2019 4Runner SR5 Premium/3rd row.
    Dislike. Thank you for the information though!

  13. Jul 8, 2022 at 5:25 AM
    #13
    Thatbassguy

    Thatbassguy New member? Really??

    Joined:
    Mar 27, 2019
    Member:
    #9314
    Messages:
    13,483
    Gender:
    Male
    First Name:
    James
    S/E Wisconsin
    Vehicle:
    2019 TRDORP, KDSS, MGM
    RSG sliders, Yakima offgrid basket, Pro-Comp wheels, SOS Streamline bumper and skids, Warn VR EVO10S winch + Ultimate Sidewinder, Bilstein 6112 + 5100 + rear lift coils, Rigid Dually SS ditch lights w/Caliraised brackets and OEM style dash switch
    @MountainMan , how is the bar holding up? I have read about moisture getting into Nilight bars.

  14. Jul 26, 2022 at 2:35 AM
    #14
    KeddyBill

    KeddyBill New Member

    Joined:
    Jul 26, 2022
    Member:
    #27951
    Messages:
    3
    Gender:
    Male
    First Name:
    Keddy
    Miami
    I love that difference, but it seems not so easy to wire that up
