2001 needs entire fuel and charcoal canister system

I decided my summer project was to rust treat my frame, which isn't too bad. I used an air hammer to remove flaking before I would apply POR15. In the process, I realized all my steel lines in the fuel system including fill neck, tank, and charcoal canister needed to be replaced. Steel hose connectors were dissolved and steel lines inside rubber tubes had rusted and expanded. I've got a good engine, drive train, frame and body, but I need a list of parts and diagrams for everything from the gas cap up to and including the fuel filter and its lines. I've found the fuel tank, fuel fill neck, and fuel pump assembly which comes with lines forward. But there are lines going forward of the charcoal canister I need part numbers for and diagrams to ensure everything is done correctly.
This is an '01 with the canister under the spare tire.



2001 = 2002



Try these. Hope they work.

https://www.toyodiy.com/parts/p_U_2001_TOYOTA_4RUNNER_RZN180L-GKPSKA_7751.html

https://www.toyodiy.com/parts/p_U_2001_TOYOTA_4RUNNER_RZN180L-GKPSKA_7751.4.html

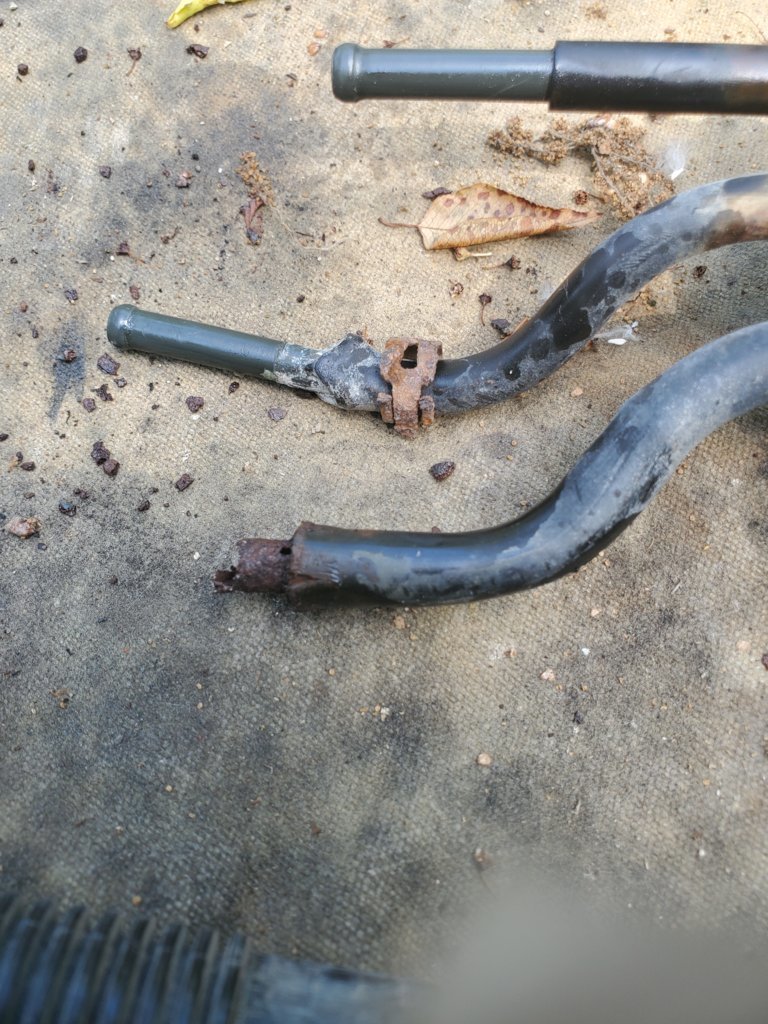

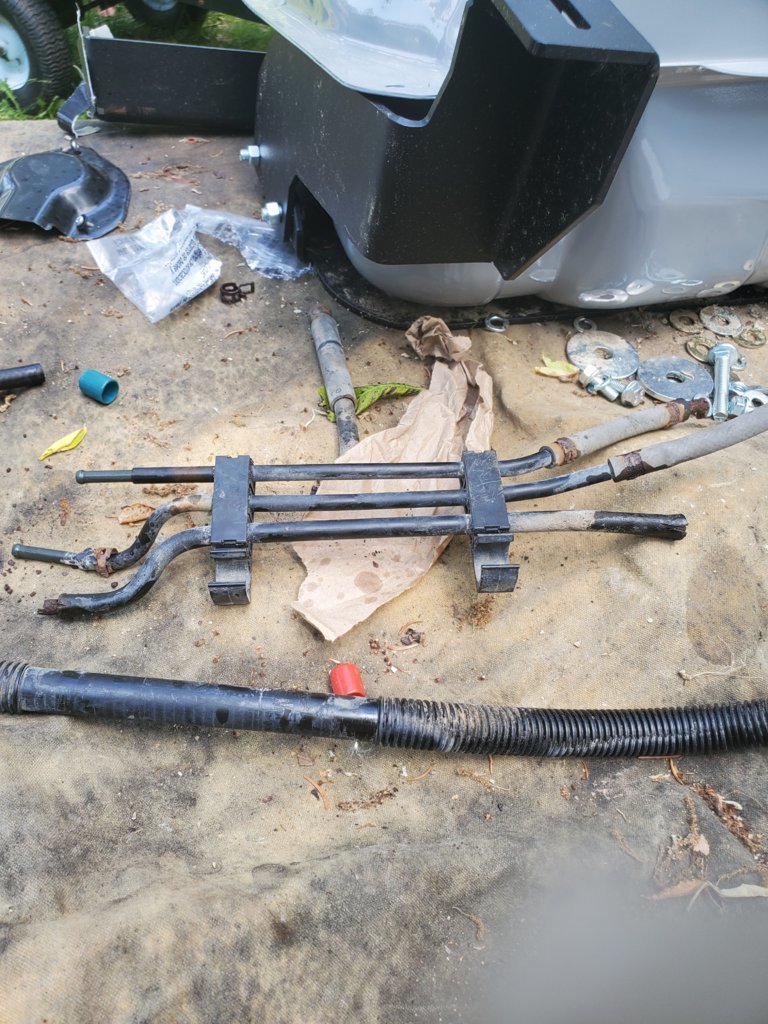

These are lines that connect to the charcoal canister above the spare. Tubes are rusted beyond saving. Do I just bypass the hardlines with fuel line and barb unions, or is this part available? I can't find a part number for it



Part number for that should be:
7702635120

That's what partsouq.com gives me.

It is discontinued. So yes, you'll have to rebuild it with fuel hose and connectors. Looks like just that 1 line needs replacing.



I'm sure you can remake the lines using nicopp which wont rust and will be much easier to shape.
